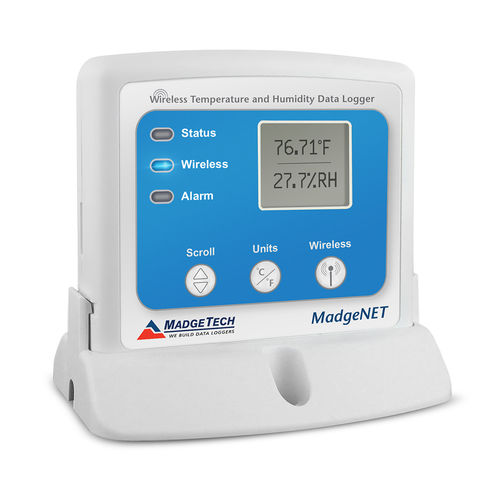

Relative humidity data-logger RFRHTemp2000A

temperature and humiditywirelessradio frequency

Overview
The RFRHTemp2000A is a wireless temperature and humidity data logger with external humidity and RTD-based temperature sensors, designed for fast response and reliable environmental monitoring. The integrated LCD provides current readings plus minimum, maximum and average statistics. User-programmable alarms can trigger email or text notifications when set thresholds are breached. Compatible with MadgeTech 4 Software for start/stop/download and data presentation in customizable engineering units. MadgeTech Cloud ready for remote monitoring on smartphones, tablets or web-enabled devices. Note: RFC1000 wireless interface required.

Key Features

• Digital LCD display with current/min/max/average statistics
• Continuous monitoring with selectable reading rate (1 s to 24 hr)
• Configurable alarms and notifications (email/text)
• MadgeTech 4 Software and MadgeTech Cloud compatibility
• Typical battery life ~3 years at a 1 minute reading rate

General
Memory: 16,128 readings (all channels enabled)
Reading Rate: 1 second to 24 hours
Baud Rate: 250,000
LED Indicators: Green, Blue & Red
Battery Life: ~3 years typical at a 1 minute reading rate
Material: ABS plastic
Dimensions: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - data logger only
IP Rating: IP22
Operating Environment: -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package: RFC1000
Approvals: FCC (US), IC (CA), CE, KCC (South Korea), CMIIT (China), LCIE (Japan). Approved for use, purchase and distribution in multiple countries worldwide; consult datasheet for full list.

Temperature
Internal Channel Temperature Sensor: Resistance Temperature Detector (RTD)
Internal Channel Temperature Range: -20 °C to +60 °C (-4 °F to +140 °F)
Internal Channel Temperature Resolution: 0.01 °C (0.018 °F)
Internal Channel Temperature Calibrated Accuracy: ±0.5 °C (0 °C to 55 °C)

Humidity
Humidity Sensor: Relative humidity sensor (external)
Humidity Range: 0 %RH to 95 %RH
Humidity Resolution: 0.1 %RH
Humidity Calibrated Accuracy: ±3.0 %RH (specified accuracy 25 %RH to 75 %RH at +20 °C to +40 °C; hysteresis error 1 % typical, 3 % maximum)

Wireless
RF Carrier Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET transceiver with fully bi-directional communication
RF Baud Rate: 250,000
Output Power: +0 dBm typical
Receiver Sensitivity: -95 dBm typical
Typical Line-of-Sight Range Outdoors: Up to 2,000 ft
Typical Line-of-Sight Range Indoors: Up to 500 ft

Technical specifications

• Model: RFRHTemp2000A
• Part Number: 901423-00
• Memory: 16,128 readings (all channels enabled)
• Reading Rate: 1 s to 24 hr
• Temperature Sensor: RTD; Range -20 °C to +60 °C; Resolution 0.01 °C; Accuracy ±0.5 °C (0 °C to 55 °C)
• Humidity Sensor: Relative humidity; Range 0–95 %RH; Resolution 0.1 %RH; Accuracy ±3.0 %RH
• Display: LCD with current/min/max/average statistics
• Alarms & Notifications: User-programmable alerts via email/text
• Wireless: 2.45 GHz MadgeNET, RFC1000 interface required; typical range up to 2,000 ft outdoors
• Battery Life: ~3 years at 1 minute reading rate
• Material / Protection: ABS plastic / IP22
• Operating Environment: -20 °C to +60 °C; 0–95 %RH non-condensing
