Humidity data-logger UltraShock

temperaturepressureshock

Overview

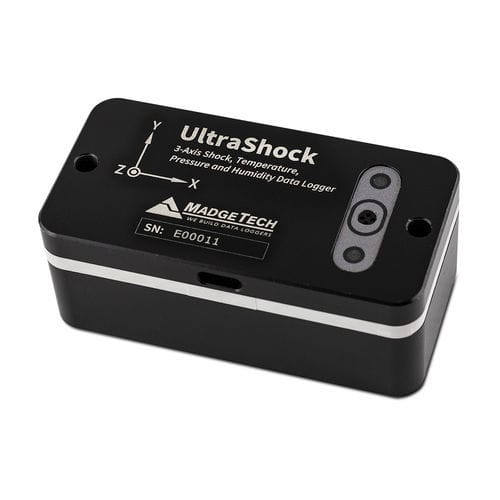

The MadgeTech UltraShock is a compact, stand‑alone tri‑axial shock data logger with three selectable built‑in acceleration ranges. It records shock plus temperature, humidity and pressure, and includes a calibration certificate. The unit features a USB‑C interface and rechargeable battery for field use.

Key Features

• Three acceleration ranges: ±15 g, ±100 g and ±300 g
• Records shock, temperature, humidity and pressure
• Memory: 3,593,358 non‑volatile readings (598,893 per channel)
• Sampling rate for shock up to 1 kHz (1000 Hz)
• Rechargeable battery; typical operation 20–29 days depending on settings
• Direct USB‑C connection; AC adapter and USB‑C cable included

General
Memory: 3,593,358 readings (598,893 per channel, all channels in use)
Reading Rate: 1024 Hz to 5 minutes for shock; temperature, pressure & humidity sampled approximately every 2 seconds when intervals <2 s, otherwise sampled at reading rate
Battery Life: Typical 20–29 days depending on settings (reading rate, trigger level, peak vs instantaneous)
Material: Anodized aluminum housing
Dimensions: 86 mm x 43 mm x 33 mm (3.4 x 1.7 x 1.3 in)
Operating Environment: -20 °C to +60 °C; 0 %RH to 95 %RH non‑condensing
Interface: Direct USB‑C connection (cable included); 1 MBaud
Approvals: CE, EMC Directive 2014/30/EU, RoHS 2011/65/EU; IP64 rating

Shock
Accelerometer Type: MEMS semiconductor
Acceleration Ranges: ±15 g / ±100 g / ±300 g
Acceleration Resolution: 0.02 g / 0.05 g / 0.2 g (by range)
Calibrated Accuracy: ±0.3 g / ±2.0 g / ±6.0 g (by range)
Sampling Rate: Up to 1000 Hz (1 kHz)
Accelerometer Frequency Response: >1000 Hz (15 g); >500 Hz (100 g, 300 g)

Compatibility & Accessories
Compatible with MadgeTech 4 Software for configuration, start/stop and data download. AC adapter and USB‑C cable included. Replaces previous UltraShock Legacy and TSR101 models.

Technical Specifications

• Model name: UltraShock
• Brand: MadgeTech
• Tri‑axial shock measurement with three selectable ranges: ±15 g, ±100 g, ±300 g
• Shock sampling up to 1000 Hz
• Memory capacity: 3,593,358 readings (598,893 per channel)
• Temperature, humidity and pressure logging in addition to shock
• Acceleration resolution: 0.02 g / 0.05 g / 0.2 g
• Calibrated accuracy: ±0.3 g / ±2.0 g / ±6.0 g
• Battery: Rechargeable via USB‑C; typical battery life 20–29 days
• Material: Anodized aluminum housing
• Dimensions: 86 mm x 43 mm x 33 mm (3.4 x 1.7 x 1.3 in)
• Operating range: -20 °C to +60 °C; 0–95 %RH non‑condensing
• IP rating: IP64
• Approvals: CE, EMC Directive 2014/30/EU, RoHS 2011/65/EU
• Interface: Direct USB‑C connection; 1 MBaud
