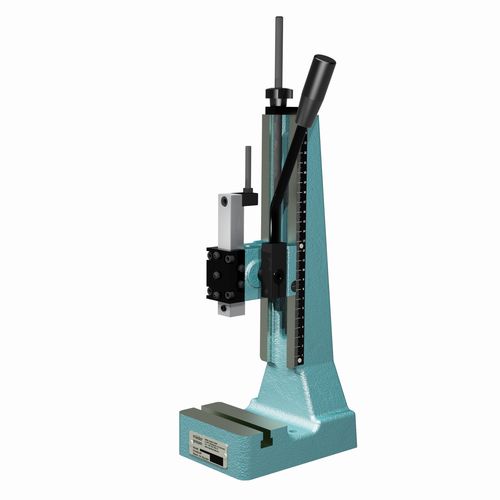

Manual press VZ 150-40 series

rack-and-pinionpunchingram

Working Stroke [mm]: 0 Throat [mm]: 63 Troat [mm]: 0 T-slot [mm] similar to DIN 650: 10 Ram bore Øxdepth [mm]: 10H7 x 25 Ram Ø [mm] / Surface F [mm²]: 20 x 20 Space required CxG [mm]: 110 x 160 mäder rack-and-pinion presses transmit their pressing force constantly over the entire length of the stroke. Direct power transmission via the hand lever permits extreme precision in the pressing operation. The hand lever with ergonomic be fixed through 360°: Adaptable for any body size and application. Lever us angled to the side in an ergonomically comfortable position: this allows free view of work area. The R/L version of Rack-and-pinion presses allow simple and easy conversion for lefthanders without losing the tool setting. Ideal for job sharing on one press. The square ram has significant advantages compared with the round ram: • - Absolute protection against twisting • - Hardened and precisely ground ram • - Press ram guide free from play • - Readjustable jib strips for square ram • - Large tool locating surface • - Guides in tool therefore usually unnecessary • - Practically maintenance-free operation Tools can be securly fixed by a screw. mäder APZ type rack-and-pinion presses are available with capacities of 1.5 kN and 2.5 kN and two different lengths of stroke. They have spespecially be designed for serial or individual manufacture in manual workstations. The manual force of 120 N to be applied is user-friendly. As many applications require less force, fatigue-free working is possible even with serial production.
