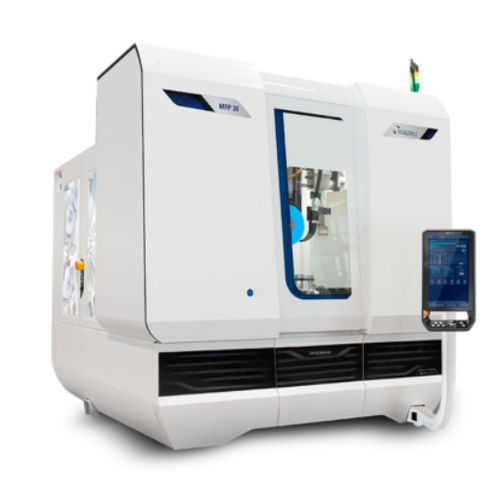

CNC grinding center MFP 30
5-axis

CNC grinding center
CNC grinding center
Add to favorites
Compare this product

Characteristics

Control type
CNC
Other characteristics
5-axis
Power

18 kW (24.5 hp)

X travel

500 mm (20 in)

Y travel

450 mm (18 in)

Spindle speed

12,000 rpm (75,398 rad.min-1)

Description

Compact machine concept The compact 5 axis grinder is ideal for grinding complex geometries, particularly in the case of guide and rotor blades as well as heat shields for aircraft turbines. The workpieces to be machined are loaded ergonomically directly from the front into the working space. Heavy workpieces with a suspension device can be loaded from the top with a crane. The compact and space-saving design allows optimal use of the existing production area and enables effective production flow. High efficiency and high torque The high performance spindle drive enables the combination of different grinding processes, such as creep feed grinding with corundum or CBN grinding. Even at low speeds, full power and high torque remain available. The robust tool holding fixture allow wide machining contours to be realized at high removal rates. The grinding process can be performed with emulsion or oil. The high speed spindle provides optimal machining conditions for challenging grinding and milling processes in one clamping. Process optimized coolant supply The 2-axis controlled coolant nozzle enables an optimal coolant supply to the tool or workpiece. Nozzles are available on the grinding support for drilling and milling tools, and a coolant supply can be provided through the spindle. Thanks to integrated grinding wheel cleaning, the grinding wheel remains clean and sharp for longer periods during grinding. This increases the removal rates while reducing the grinding wheel wear.
