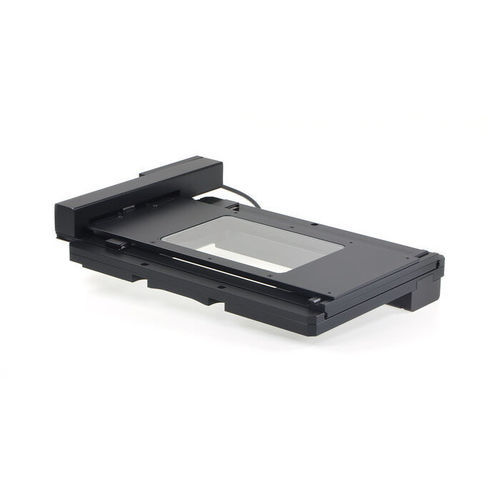

XY positioning stage SCAN IMmotorized2-axisautomatic
Add to favorites
Compare this product
Characteristics
- Orientation
- XY
- Type
- motorized
- Number of axes
- 2-axis
- Other characteristics
- automatic
- Stroke
Max.: 130 mm
(5.118 in)Min.: 100 mm
(3.937 in)
Description
Part number
90-24-550-0000
Key features
Accessories
Microscopes (compatibility)
Datasheets / Documents
Technical specifications
90-24-550-0000
Key features
- Continuously adjustable travel range limitation for flexible sample positioning
- Stationary, permanently mounted 2 m connecting cable between scanning stage and controller
- Integrated ETS (electronic stage identification) for automatic identification and controller parameterization
- Compatible with all Zeiss Axio Observer standard objectives
- Compatible with Definite Focus
- 5-year guarantee when operated with the Märzhäuser TANGO controller
Accessories
- ERGODRIVE 2
- ERGODRIVE 3
- Stage insert IM (multiple variants)
- Universal stage insert IM
Microscopes (compatibility)
- Zeiss - Axio Observer (inverted microscopes)
Datasheets / Documents
- 90-24-550-0000_SCAN_IM_130_100_EN.pdf
- 90-24-550-0000_SCAN_IM_130_100_DE.pdf
Technical specifications
- Series / Model name: SCAN IM
- Travel range limitation: continuously adjustable
- Connecting cable: stationary and permanently mounted, 2 m length
- Integrated ETS: electronic stage identification for automatic identification and controller parameterization
- Objective compatibility: all Axio Observer standard objectives
- Compatibility: compatible with Definite Focus
- Warranty: 5 years when operated with Märzhäuser TANGO controller
- Part number: 90-24-550-0000
