Not specified PCI Express Card TANGO 3 PCI-E neo

3-axis

Overview

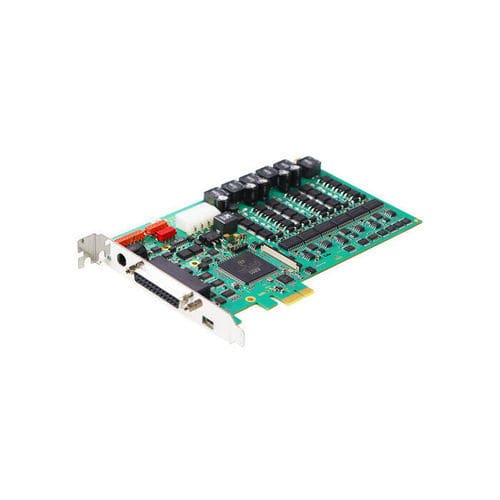

The TANGO 3 PCI-E neo is a high-resolution stepper motor controller implemented as a PCI‑E plug-in card for industrial PCs. It controls three axes (X, Y, Z) with a microstepping resolution of 819,200 microsteps per revolution and supports motor speeds up to 70 revolutions per second. The card communicates over the PCI‑E bus and is intended for integration into machine control and automation systems.

Key features

• Three-axis stepper motor control (XYZ)
• Resolution: 819,200 microsteps per revolution
• Maximum speed: up to 70 motor revolutions/s
• Manual operation via digital joystick or ERGODRIVE digital
• AUX I/O module: TTL I/Os (4× digital inputs, 4× digital outputs), 1× analog input (0–5 V), 2× analog outputs (0–10 V)
• Trigger/Snapshot: position-synchronous trigger and position memory
• PCI‑E bus communication for seamless PC integration

Technical specifications

• Product type: Stepper motor controller as PCI‑E plug-in card
• Axes: 3 (X, Y, Z)
• Resolution: 819,200 microsteps per revolution
• Max. speed: up to 70 revolutions/second
• Manual control: digital joystick or ERGODRIVE digital
• AUX I/O: 4× digital input, 4× digital output (TTL)
• Analog I/O: 1× input (0–5 V), 2× outputs (0–10 V)
• Safety: Power Stage Enable (safety function)
• Trigger: position-synchronous trigger, position snapshot
• Interface: PCI‑E bus
• Article number: 00-6076-0300-1003
• Delivery: without control unit and without motor cables

Datasheets

• XX-6076-XXXX-XXXX_TANGO_PCI-E_neo_DE.pdf
• XX-6076-XXXX-XXXX_TANGO_PCI-E_neo_EN.pdf
• TANGO_PCI-E_neo_Ausstattungsvarianten_DE.pdf
• TANGO_PCI-E_neo_Equipment_Options_EN.pdf
