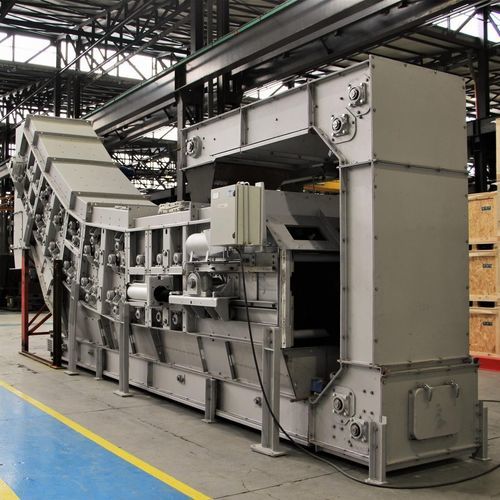

Belt conveyor Ecobelt® B

transporthandlingcooling

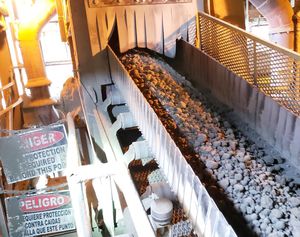

This belt bucket conveyor is generally used in cement plants to transport hot clinker from the kiln cooling system to the silo, in a safe and environmentally friendly way, even in the case of conveying routes with up to 75° inclination. Its full reliability comes to force when replacing Apron-based or pan conveyors, suffering from high operating costs or harsh and frequent maintenance problems. The Ecobelt® B conveyor features buckets securely bolted on a patented steel double-wire mesh system. The belt damage-tolerant design is based on a multi-link concept: the mesh provides redundancy, little to no maintenance, and trouble-free continuous operation. Even in case the mesh gets severely damaged, the conveyor will keep running till the scheduled maintenance, without sudden failures. The trouble-free operation ensures productivity and profitability and results in greater efficiency and uptime during a 24/7, year-round process. The unique interlocking design of the buckets (up to 1,600 mm wide) maximizes the conveying area, ensuring high capacities. Suitably selected feeding equipment and chute provide a uniform bucket filling and an even material distribution over the entire width.
