Construction insulation LASTO-LRB

plasticrubbersteel

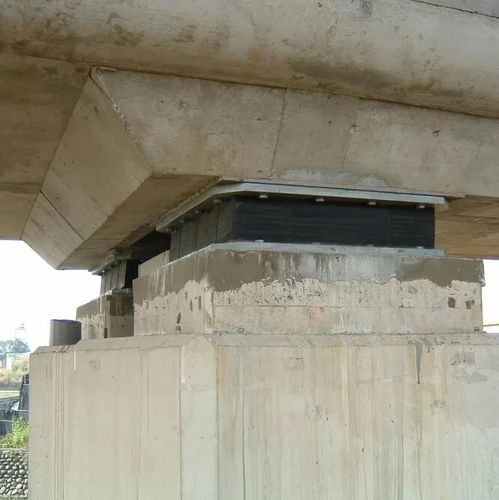

For seismic isolation of structures Acts as regular bearing but allows large sudden movements Lead core deforms providing damping (up to 30%) and energy dissipation Principle mageba LASTO-LRB Lead Rubber Bearings isolate a structure from the movements of the ground during an earthquake and thus limit the seismic energy acting on the structure. They are similar to regular reinforced elastomeric bearings with steel connection plates, but feature a lead core. This core will undergo plastic deformation during an earthquake, generating heat and dissipating the seismic energy. Applications LASTO-LRB Lead Rubber Bearings can be used in the construction of new structures, or to enhance an existing structure’s strength and resistance to seismic forces. Under normal conditions, they function as regular deformation bearings, and are thus particularly suitable for structures with limited space availability, where the installation of separate bearings and seismic protection systems is not possible. Schematic view (cutaway) of a LASTO-LRB bearing LASTO-LRB bearing ready for installation Testing of a LASTO-LRB bearing
