Steel expansion joint TENSA-RAIL RSU

squaresocketfor bridge construction

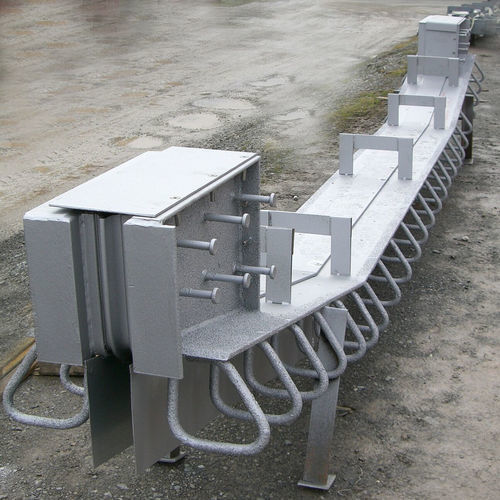

Typical movements: Up to 500 mm For railway structures (under ballast) Based on design of well-proven TENSA-GRIP joint Principle mageba TENSA-RAIL RSU single-gap expansion joints allow for movements up to 350 mm and more. They are made of steel edge profiles and an elastomeric sealing fixed between the profiles. For larger movements they are fitted with a drainage channel made from EPDM. The joint‘s gap is protected by a cover plate from the ingress of dirt or ballast. Applications TENSA-RAIL RSU expansion joints are suitable for the use in railway bridges with and without ballast. The ballast either lies directly on the joint or, ideally, on an insulation mat introduced between the ballast and the bridge slab.
