NdFeB permanent magnet arcfor motorsfor sensors
Add to favorites
Compare this product
Characteristics
- Material
- NdFeB
- Configuration
- arc
- Applications
- for motors, for sensors, for automotive applications, for medical applications, electronic equipment, for elevators, for electric vehicles
- Other characteristics
- anisotropic, high-performance, high-energy, epoxy-coated, countersunk
Description

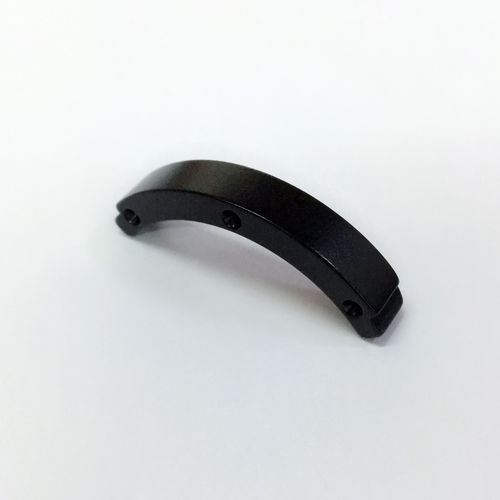

Magengine Arc NdFeB magnets with six countersunk for sensor
Specifications:
1.Material: NdFeB N45H
Br: 13.4-13.7KGs, bHc: >=12.5KOe, iHc: >=17KOe, (BH)max: 43.5-45.9MGOe
2. Size: R29.5xr24x8x112.5°mm
3. Coating: NiCuNi+Epoxy
4. Magnetization: 5-poles diametrically magnetized
5. Highlights: countersunk on both sides, good concentricity for all the countersunk. With steps on both end.
6. Application: sensor, etc.
If you have any special requirement, just tell us, we can design the magnet and offer the suitable magnet for you.
Magengine Team
