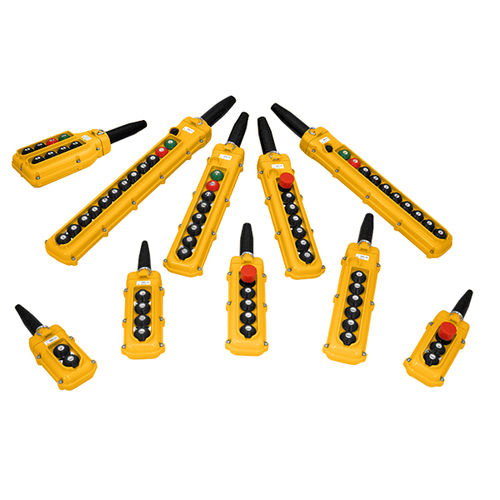

6-button pendant station SBN
10-button4-button8-button

6-button pendant station
6-button pendant station
6-button pendant station
6-button pendant station
Add to favorites
Compare this product


Characteristics

Number of buttons
2-button, 4-button, 8-button, 6-button, 10-button, 12-button
Protection class
NEMA 4
Other characteristics
emergency stop, rubber

Description

SBN provides the ultimate in flexibility – select from a wide range of pendant sizes and configurations to meet any application. Featuring a lightweight, ergonomic design, SBN Pendant Pushbutton Stations provide optimal control and performance with less effort and fatigue than traditional pendants. This slim-line pendant rests comfortably in the palm of your hand and most models weigh under two pounds. SBN is available in 2- to 12-button configurations; single, two or three speed designs, momentary, maintained on/off, or Emergency Stop; and with a variety of options and accessories. Both standard pre-assembled pendants and pre-wired pendants are available with minimal lead time. Pendant Design Single, two-speed, and three-speed button pairs feature mechanical interlocks for greater safety External strain relief hardware relieves tension on individual conductors On 6- to12-button models, a shrouded knock-out hole is provided for the installation of a pilot light or horn accessory Polycarbonate NEMA 4/4x rated -5˚C (23˚F) to 40˚C (104˚F) Switch Features Elastic, chemically resistant gaskets ensure a tight seal between enclosure front and back Pre-wired common circuit simplifies wiring of switches Designed with visible contacts to ease wiring Rated for 3 Amps, 250 VAC Cable Features Tapered round cable entry gland provides a watertight seal, while a slide-on rubber boot provides added water protection Internal cable grip allows pendant to be serviced while hanging on cable Resistant to UV, ozone, water, oil and weather Available in 8, 12, 16, 24, 30 and 36 conductors 105°C (221°F) 600 VAC

Catalogs

MH445_SBN
MH445_SBN
2 Pages
