EMI shielding film / metal
0.002 - 0.01 in | CO-NETIC® series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
EMI shielding film EMI shielding film - 0.002 - 0.01 in | CO-NETIC® series
{{requestButtons}}

Characteristics

  • Type:

    EMI shielding

  • Material:

    metal

Description

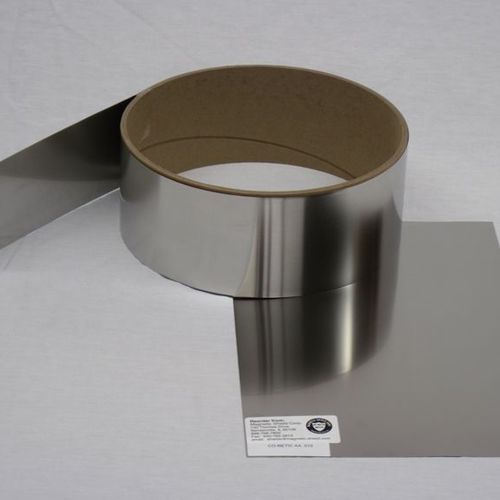

Co-NETIC® AA Perfection Annealed Foil is used primarily in low intensity fields where high attenuation is desired (high initial permeability & high shielding efficiency). Samples can be found in our Lab Kits, which contain our most popular gauges of Co-NETIC AA Perfection Annealed alloy. Our Perfection Annealed Foil is considered far superior in shielding performance due to its consistent quality, material composition and our Perfection Annealing process.

All gauges are available with double-faced PST (pressure sensitive tape) with release coated liner. Operating temperature range of PST is 32F to 140F (0C to 60C).

Foils can be slit to a minimum width of 1/4" (6,35mm), with or without PST backing. Foil width tolerance is 0.010" [0,25mm], or 0.015" [0,38mm] with PST backing.

Foil is Perfection Annealed for maximum attenuation and acceptable surface appearance. It does not require re-annealing unless severe forming or heliarc welding is performed.
