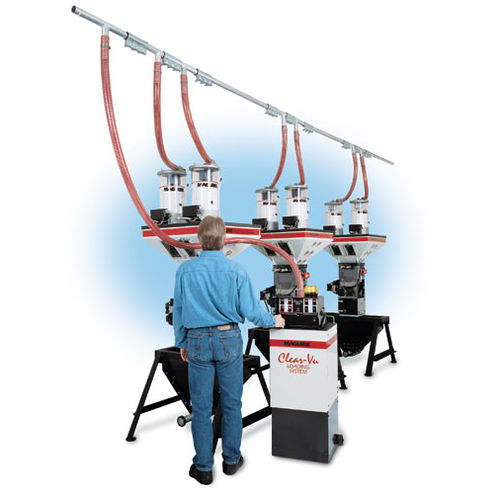

Bulk loading system MLS series

The Maguire Loading System provides all the benefits of a mini-central system with the added convenience of being compact, easy to reposition and low maintenance. Full view of the material loading Direct view of material loading makes it easy for the operators to monitor operation and adjust set conveying times. Reduction of clogging Clogging is reduced with a patented deceleration chamber that facilitates separation of material from the air stream and a fast-action slide-gate that prevents pellet entrapment during material discharge. Easy access for cleanout The top cover of the receiver includes the vacuum valve, material inlet and cleanout port. The MLS Maguire Loading System controller Two types of control - a basic 8 receiver control or the advanced FlexBus control which is expandable to 5 vacuum groups and 48 receivers per pump. Easy setting of fill time Simplifying conveying setup, the push-button activation of the 'Autofill' software sets the fill-time for each receiver. Automated loading The controller sequences through the various receivers, loading each as either First-In-First-Out or priority loading, depending on your requirements. Load conveying alarms A load-failure alarm with reset is incorporated in the controller. Choice of compact vacuum pump The power unit is portable and is available with a 1, 2.5, 5 or 10 HP pump / .75, 1.9, 3.7, 7.5 k/W pump. Modular layout The modular layout of the MLS system allows you to expand as your plant grows.
