Centrifugal blower GRK seriesairsingle-stage230V / 50Hz
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- centrifugal
- Number of stages
- single-stage
- Voltage / frequency
- 230V / 50Hz, 400 V / 50 Hz
- Other characteristics
- single-phase, explosion-proof
- Flow
Max.: 7,000 m³/h
(247,202.67 ft³/h)Min.: 540 m³/h
(19,069.92 ft³/h)- Nominal power
120 W, 180 W, 550 W, 1,100 W, 3,000 W
(0.163 hp, 0.245 hp, 0.748 hp, 1.496 hp, 4.079 hp)- Sound level
57 dB, 65 dB, 66 dB, 68 dB, 70 dB
- Weight
Max.: 48 kg
(105.82 lb)Min.: 4 kg
(8.82 lb)- Depth
288 mm, 435 mm, 460 mm, 568 mm, 698 mm
(11.3 in, 17.1 in, 18.1 in, 22.4 in, 27.5 in)- Height
270 mm, 400 mm, 503 mm, 590 mm, 699 mm
(10.6 in, 15.7 in, 19.8 in, 23.2 in, 27.5 in)
Description

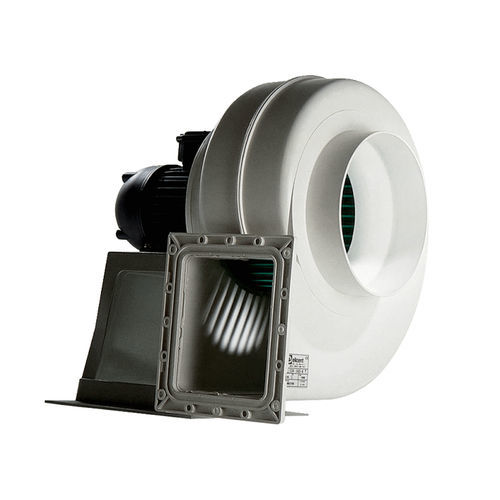

Centrifugal blower made of plastic with rectangular exhaust opening, size 120, single-phase AC
AC motor
• Single-phase AC motor.
• Protection class IP 55.
• S1 operating mode (continuous operation).
• The temperature in the fan motor is monitored by PTC thermistors. The PTC thermistors must be connected to a release system, that permanently disconnects the fan from the power supply if the temperature is too high.
Electrical connection
•Connection in the terminal box on the motor.
Special versions
•The following special versions are available on request, at an extra cost:
Version for explosion-proof areas.
