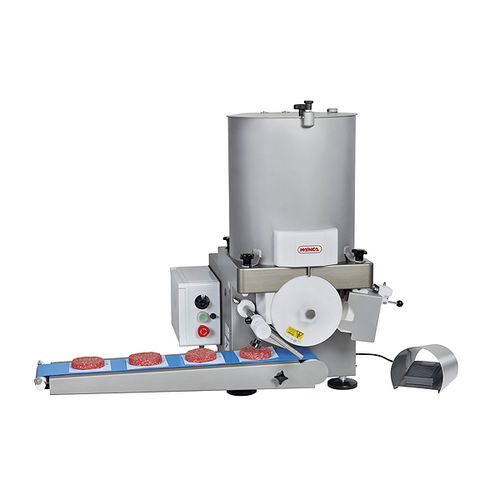

Hamburger forming machine HA-4400

automaticmanual230 V

Production: up to 4400 units per hour. Machine equipped with variable speed drive. 180º drum that ejects the product every half round. Available drums with dirrent forms and sizes up to 120 mm Ø. See the available drums below in "Options". Adjustable thickness of the product from 4 to 34 mm depending on the drum. Single phase motor of 1HP 230V 50Hz (3.3 Amp.) Operation: automatic or manual with the foot pedal. Optional automatic paper attachment. Manual wire cleaner (optional auto wire cleaner). Conveyor belt: 33cm long (optional conveyor belt: 75cm long). OPTIONS AVAILABLE OPTIONS: Automatic paper attachment. 45L hopper (± 25 Kg) Conveyor belt (75 cm long) Auto wire cleaner (requires a compressor) AVAILABLE DRUMS: HA4400 single form round drum Up to 120 mm Ø and adjustable depth up to 24 mm Up to 120 mm Ø and adjustable depth up to 34 mm HA4400 double form round drum Up to 55 mm Ø and adjustable depth up to 24 mm Up to 55 mm Ø and adjustable depth up to 34 mm HA4400 triple form round drum Up to 35 mm Ø and adjustable depth up to 24 mm Up to 35 mm Ø and adjustable depth up to 28 mm
