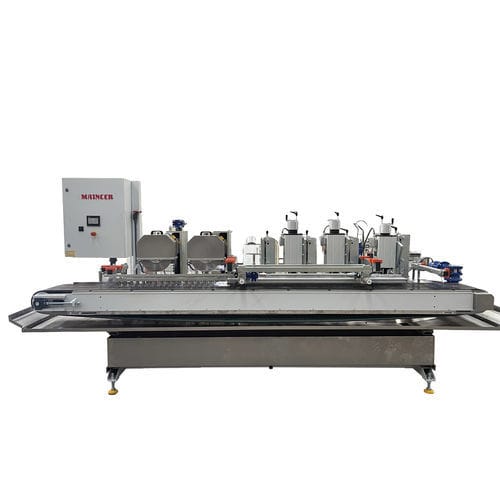

Glass edging machine MCF

Overview
The MAINCER MCF skirting board machine is designed for single-pass production of skirting boards and miters from tiles and panels made of various construction materials, with optimal performance on ceramic and porcelain. Using appropriate diamond tools it can also machine stone, marble, granite, resin/glass composites and concrete.

Materials

• Ceramic and porcelain tiles
• Naturals stone
• Marble
• Granite
• Extruded tile
• Concrete
• Resin and glass composites

Applications / Profiles

• Straight-cut skirting board
• Skirting board with microbevel
• Bevelled skirting board
• Skirting board with miter (45°)
• Half bullnose skirting board (with or without bevels)
• Bullnose / ½ circle skirting and pool coping pieces
• Step treads: simple, bevelled, half bullnose, with anti‑skid slots

Main features

• One-step production of skirting boards and miters from tiles and other construction materials
• Conveyor: central B-type belt to prevent lateral movement; drive drum with elastic joint
• Drive: dual gear motor for conveyor traction
• Motors: 2.3 kW high-efficiency motors for heavy-duty, humid and continuous operation
• Chassis: 80x80x3 mm steel tubing; 10 mm carbon steel plates; hot-dip galvanized; 4 mm stainless steel sacrificial plate on support surface
• Cooling: individual loc-line tubes for diamond tool cooling
• Electrical: onboard electrical cabinet with components from leading European manufacturers
• HMI: touch screen for parameter setting and machine control

Optional features

• Dismountable stainless-steel auxiliary chassis for small or removable workpieces
• Various optional configurations and tooling to match production needs

Technical specifications

• Model: MCF
• Brand: MAINCER
• Primary function: single-pass production of skirting boards and miters
• Materials processed: ceramic, porcelain, stone, marble, granite, extruded tile, concrete, resin/glass composites
• Conveyor: central B-type belt; elastic-joint drive drum; dual gear motor drive
• Main motors: 2.3 kW (example) for principal axes
• Chassis: 80x80x3 mm tubing; 10 mm plates; hot-dip galvanized; 4 mm stainless sacrificial plate
• Cooling system: individual loc-line tubes to each diamond tool
• Electrical cabinet: onboard, high-quality European components
• User interface: touch screen for parameter adjustments
