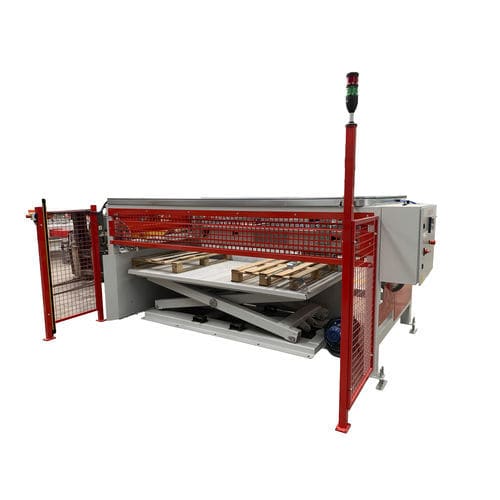

Ceramic stacker Apilador de láminas

transportautomatic

Overview
The sheet stacker is an automated stacking system designed to stack large-format tiles quickly and safely. The unit raises and lowers an adjustable platform using a scissor chassis driven by either a gear motor with worm screw or a pneumatic piston depending on the load. An electric control panel with touchscreen and PLC manages automatic stacking cycles. The platform receives each tile, lowers to consolidate the stack and is ready for the next piece. The machine is intended for installation at the end of a conveyor line and includes a base for transferring stacked piles to another location.

Main functionalities

• Automatic stacking of large-format tiles via an adjustable scissor-lift platform.
• Platform actuation selectable between gear motor with worm screw or pneumatic piston according to supported weight.
• Electric control panel with touchscreen and programmable controller (PLC) for automatic cycle management.
• Presence/position sensors detect when the piece is fully on the platform and trigger lowering/raising sequences.
• Platform height adjustable to match tile/piece thickness.

Options & safety

• Customisable options available to adapt the system to specific production requirements.
• Optional safety fencing and protections to meet CE requirements and improve operator safety.

Usage

• Designed to be positioned at the end of a transport/conveyor line to stack tiles and prepare piles for transfer.
• Suitable for handling large-format tiles and similar flat pieces.

Technical specifications

• Application: Large-format tile stacking system.
• Platform type: Scissor chassis platform, adjustable height.
• Platform material & finish: Carbon steel, sanded and powder-coated.
• Actuation: Gear motor with worm screw or pneumatic piston (selection based on load).
• Control: Electric panel with touchscreen and PLC for automatic stacking commands.
• Sensors: Presence/position sensors to detect correct placement and sequence operations.
• Installation: Intended for end-of-line installation; includes base for moving stacked piles to another location.
• Safety: Optional safety fencing available; CE compliance where specified.
