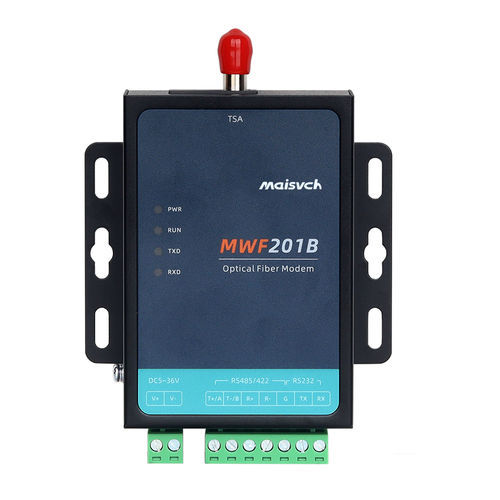

Digital signal converter MWF201B-F

RS-422RS-232galvanically-isolated

The MWF201B-F is a reliable industrial-grade RS232/485/422 to fiber optic converter, designed to provide long-distance, high-speed serial communication in challenging industrial environments. With one serial port (RS232/RS485/RS422) and one fiber optic port, this converter allows seamless integration of serial devices into fiber-optic networks, enhancing communication reliability and range. Capable of supporting a range of fiber optic modules, the MWF201B-F ensures robust performance even in environments with significant electromagnetic interference. The device’s auto-sensing capabilities and resistance to electrical disturbances make it perfect for use in automation, security, transportation, and more. Whether you need to extend your serial communications across vast distances or ensure stable, interference-free data transfer in industrial conditions, the MWF201B-F delivers a powerful, cost-effective solution. - Seamlessly integrates serial devices with fiber-optic networks for machine control and monitoring systems. - Extend communication between devices in building security, such as card readers and security panels. - Ensures reliable data communication for ticketing and toll collection in remote or high-traffic locations. - Enables robust communication for urban infrastructure systems, including traffic monitoring and environmental sensors. - Provides a stable, interference-free connection for critical systems like ATMs and self-checkout machines. - Connects industrial machines, sensors, and controllers in harsh environments, ensuring high-performance communication. - Supports RS232, RS485, and RS422 serial communication protocols, offering compatibility for various industrial devices and systems. - Converts serial signals to fiber optics, supporting both single-mode and multi-mode fiber connections. Transmission distances can reach up to 100 km, ensuring long-range, high-speed communication. - Built-in smart module for automatic direction recognition of RS485 signals, simplifying installation and use. - Designed to operate reliably in harsh electromagnetic environments, with protection against static electricity, surge, and pulse interference. - Reliable performance in extreme conditions with an operating range from -40°C to +75°C, making it ideal for industrial settings. - Features an IP40-rated metal housing, protecting the device from dust and moisture. DC5-36V wide voltage input with reverse polarity protection ensures stable operation. - Wall-mountable design with simple terminal block connections for easy setup in industrial control cabinets or on-site locations. - Supports baud rates from 300bps to 115200bps, with up to 128 RS485 nodes for large-scale installations. - Standard: EIA RS232, RS485, RS422 - Type: 1 Fiber optic port, ST/SC/FC interfaces optional - Power, running, fiber transmit, fiber receive - DC5~36V, reverse polarity protection - ≤0.5W@DC24V - 2-pin 5.08mm terminal block - Dimensions: 96 × 90 × 26 mm (without connector) - Wall-mounted - Metal housing, IP40 protection - Approx. 0.25 kg - -40°C ~ +75°C - -40°C ~ +85°C - 5% ~ 95% (non-condensing) - IEC 61000-4-2 (ESD): Level 4 (Contact: ±8kV, Air: ±15kV)
