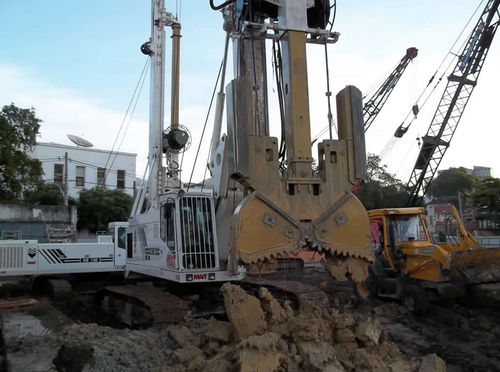

Continuous flight auger (CFA) drilling rig HR 180 DW

diaphragm wallrotarytelescopic

The HR 180, one of our most sold models, because of its versatility, and it is easily adaptable to many different applications such as - Drilling with augers or buckets - Execution of drilling casings directly with rotary and by casing oscillator - Continuous Flight Auger (CFA) - Diaphragm Walls - Execution of Double Head drilling The HR 180 is available in two versions HR 180 CP – the standard version, is equipped with a Pull-down Cylinder which exerts it’s force on the rotary, and is principally utilized for drilling large diameter bore holes. The rotary is able to work with a stroke of 5.100 m (17 ft) approx. The HR 180 CP uses a parallelogram system of articulation. HR 180 THD – available upon request, The THD system moves the rotary by utilizing the winch, allowing the rotary to be used along a larger stroke of the mast, 10 m (33 ft) approx. The THD version is particularly useful for driving and extracting casing tubes directly by the rotary, and without a doubt increasing your daily productivity. The HR 180 drilling rig base is already predisposed for all the various works listed above.
