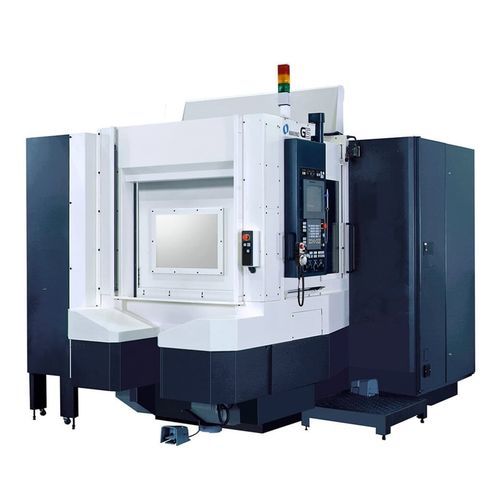

Turbine blade grinding center G5

horizontalCNC5-axis

Overview
5-axis CNC grinding machine designed for high-precision turbine parts and complex rotating components.

Product summary
The G5 is a 5-axis horizontal machining center that combines grinding, milling, drilling and tapping in a single setup. By enabling multiple operations on one machine, the G5 reduces non-value-added time, lowers capital-equipment needs and shortens part lead time—critical advantages for aerospace and precision rotating-part production.

Key capabilities

• 5-axis horizontal machining configuration (B- and C-axes)
• Integrated grinding, milling, drilling and tapping in one machine
• Single-setup processing to eliminate out-of-cut (non-value-added) time
• Engineered for high-precision turbine components and complex geometries
• 60-position automatic tool changer (ATC) for flexible tooling

Technical specifications (metric)
A-Axis: None
B-Axis: 270° (-90° to +180°)
C-Axis: 360°
Spindle speed: 12,000 rpm
Rapid traverse: 48,000 mm/min
Cutting feedrate: 48,000 mm/min
Maximum workpiece envelope: 440 Ø x 380 SR
Maximum payload: 120 kg
ATC capacity: 60 tools
Maximum tool length (CAT): 360 mm
Maximum tool length (HSK): 400 mm
Maximum tool diameter: 70 mm / 220 mm (with limitation)
Maximum tool weight: 12 kg

Technical specifications (imperial)
Pallet: 9.8"
X travel: 20.5"; Y travel: 22.0"; Z travel: 23.6"
A-Axis: None
B-Axis: 270° (-90° to +180°)
C-Axis: 360°
Spindle speed: 12,000 rpm
Rapid traverse: 1,890 ipm
Cutting feedrate: 1,890 ipm
Maximum workpiece envelope: 17.3 Ø x 15 SR
Maximum payload: 265 lbs
ATC capacity: 60 tools
Maximum tool length (CAT): 14.2"
Maximum tool length (HSK): 15.7"
Maximum tool diameter: 2.8" / 8.7" (with limitation)
Maximum tool weight: 26 lbs

Applications / Benefits

• Combine milling and grinding in one setup to eliminate non-value-added operations
• Reduce capital-equipment footprint and overall part lead time
• Optimized for turbine components and other precision rotating parts used in aerospace and power generation

Model details

• Model: G5 (5-axis CNC grinding machine)
• Axes: B-axis 270° (-90° to +180°); C-axis 360°; no A-axis
• Spindle speed: 12,000 rpm
• Rapid traverse / cutting feedrate: 48,000 mm/min (1,890 ipm)
• Max workpiece envelope: 440 Ø x 380 SR (17.3 Ø x 15 SR)
• Maximum payload: 120 kg (265 lbs)
• Tooling: 60-tool ATC; max tool length CAT 360 mm / 14.2"; max tool length HSK 400 mm / 15.7"
• Max tool diameter: 70 mm / 220 mm (with limitation) — 2.8" / 8.7" (with limitation)
• Max tool weight: 12 kg (26 lbs)
