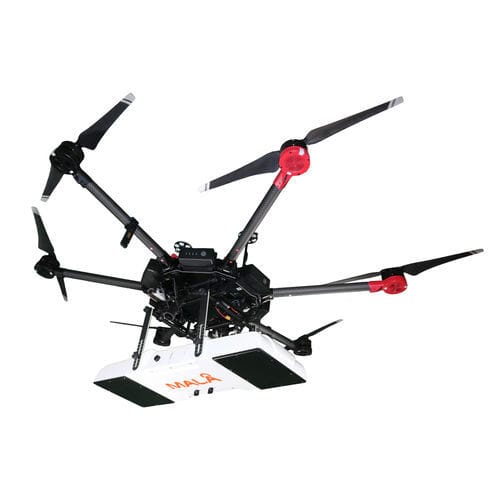

Network detection ground penetrating radar GeoDrone 600

The MALÅ GeoDrone antennas are airborne GPR solutions designed for efficient fieldwork and specifically tailored for data collection in remote, hazardous, and inaccessible areas. These antennas enable the effective collection of GPR data across a variety of challenging environments, including snow-covered ground, rocky and uneven terrain, rivers, lakes, and avalanche-prone regions. The MALÅ GeoDrone utilizes the latest GPR HDR technology from Guideline Geo. The MALÅ GeoDrone antennas are an excellent solution for various types of airborne GPR surveys. Depending on the antenna option used, they are primarily suitable for: Smaller (2.7 kg for GD600 and >3.5 kg for GD80) Optimized for specific critical application areas Wireless real-time monitoring with MALÅ Controller App (GD600 and GD80) Suitable for automated drone surveying Technical Specification Core Technology: MALÅ HDR GPR Dimensions: 620 x 216 x 80 mm (24.4 x 8.5 x 3.15”) Weight: 2.7kg (5.95 lbs) in operation Power: Single 10.8 V smart battery, optional external power 9-32 VDC, 1.5 A max Operating time: 1+ hours Built-in positioning: DGPS (SBAS) and PPS support for postsurvey synchronization with external RTK GNSS devices Environmental: IP 65
