Rotary transfer machine TSP 2CNCautomated loading/unloadingmilling
Add to favorites
Compare this product
Characteristics
- Type
- rotary
- Control type
- CNC
- Other characteristics
- automated loading/unloading, milling, for cylindrical products, 3-axis
Description

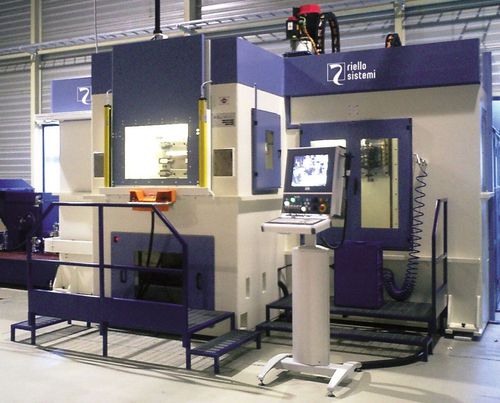

Special Purpose Machine for milling operations on four-cylinder crankcase stiffening plate.
Special Purpose Machine equipped with one single unit, slide mounted. Three-axis slide with 400mm thru 1000mm stroke. Milling spindle cartridge with HSK100 nose, spindle power 15kW. Pallet changers, one at loading/unloading station and one in operation. Pallet dimension 400mm holding a dedicated clamping fixture. Automatic loading system with anthropomorphic robot.
