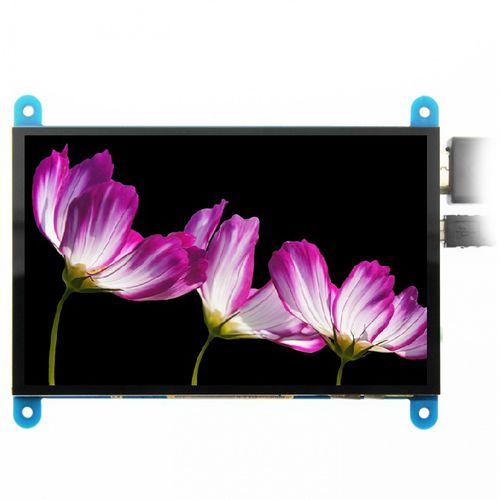

HDMI display panel colorLCD/TFTcapacitive touch screen
Add to favorites
Compare this product
Characteristics
- Type
- color, LCD/TFT, capacitive touch screen, multitouch screen
- Format
- 800 x 480
- Screen size
- 5"
- Applications
- industrial, information, digital signage, instrumentation, for vehicles, current measurement, for marine applications
- Other characteristics
- high-brightness, HDMI, electronic, LED-backlit, cost-effective, built-in
- Width
153 mm
(6.0236 in)- Height
135 mm
(5.315 in)
Description
Size: 5.0 (inch)
Resolution: 800 × 480 (dots)
Touch: 5 point capacitive touch
Audio output: support
Active Area: 108.00*64.80 (mm)
Dimensions: 121.11*95.24 (mm)
Package Size: 153*135*51 (mm)
Rough Weight(Package containing): 259 (g)
Power Dissipation: 0.30A*5V
PRODUCT DESCRIPTION
5″standard display, 800×480 resolution，maximum HDMI resolution 1920X1080 is supported
Capacitive touch screen, support 5 point touch maximum
Built-in OSD menu adjustment function (adjustable Contrast/ Brightness/Saturation, etc.)
It is compatible with mainstream mini PC such as Raspberry Pi, BB Black, Banana Pi
It can also be used as a general-purpose HDMI display, connecting computers, TV boxes, Microsoft Xbox360, SONY PS4, Nintendo Switch and so on
Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive
Work as a PC monitor, support Win7, Win8, Win10 system 5 point touch (XP and older version system: single-point touch), free drive
Support HDMI audio output
