Mobile material handler CH series
hydraulic

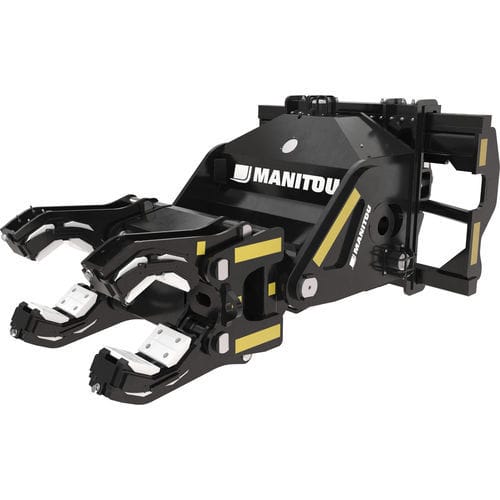

Mobile material handler - CH series - MANITOU - hydraulic
Mobile material handler - CH series - MANITOU - hydraulic
Mobile material handler - CH series - MANITOU - hydraulic - image - 2
Mobile material handler - CH series - MANITOU - hydraulic - image - 3
Mobile material handler - CH series - MANITOU - hydraulic - image - 4
Mobile material handler - CH series - MANITOU - hydraulic - image - 5
Mobile material handler - CH series - MANITOU - hydraulic - image - 6
Mobile material handler - CH series - MANITOU - hydraulic - image - 7
Mobile material handler - CH series - MANITOU - hydraulic - image - 8
Mobile material handler - CH series - MANITOU - hydraulic - image - 9
Add to favorites
Compare this product

Characteristics

Mobility
mobile
Power source
hydraulic
Operating weight

Min.: 4,079 lb
(1,850.2 kg)

Max.: 7,496 lb
(3,400.1 kg)

Maximum range

Min.: 9 in

Max.: 10 in

Description

For cylinders with diameter from 0 mm to 630 mm / 25 in. Maximum capacity up to 10500 kg / 23153 lb. Cylinder holding with cables (CH 4) or clamps (CH 10). Hydraulic movements: body rotation, side shift. CH4: Body rotation 22.5°, side shift 150 mm / 6 in, hydraulic telescopic extension, hydraulic side body tilt 15°/15°, head rotation 35°. CH10: body rotation 340°, head vertical tilt 90°. CH10: clamping pressure alarm & pressure gauge on each front & side. Clamp reduction pads for smaller cylinders.
