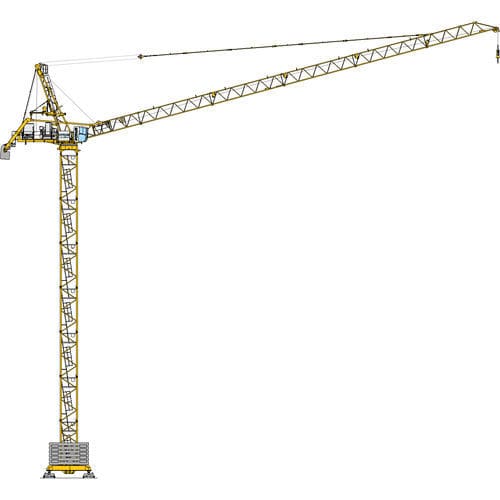

Fixed crane MR 418 A
luffing jibtop-slewingfor construction

fixed crane
fixed crane
fixed crane
fixed crane
fixed crane
Add to favorites
Compare this product


Characteristics

Configuration
fixed
Structure
luffing jib, top-slewing
Operating environment
for construction
Applications
lifting
Other characteristics
compact
Lift capacity

24 t
(26.5 us ton)

Working height

88.1 m
(289'00" )

Horizontal reach

60 m
(196'10" )

Description

The Potain MR 418 A is designed to get you set up and working faster while still providing the capacity and compact footprint that our cranes are known for. A new on-board control system allows for operation mere minutes after assembly is completed and the uniquely mounted luffing mechanism and hoist ensures there is plenty of room for operation even in the tightest of jobsites. Perfect for power plants or high-rise buildings including super-tall structures. Total luffing time: 1 min 15 sec Maximum hoisting speed: 254 meters per minute Fully frequency-controlled mechanisms for precision control  Very high speed high capacity hoist winches maximize productivity at very tall working heights Luffing mechanism and hoist are uniquely mounted inside the counterjib New on-board control system easy and rapid teach-in programming (only 3 parameters to be calibrated) Power control function (reduced electrical demand) both for luffing AND hoisting winches Excellent capabilities for working on high-rise projects One fall / 2 falls load block reeving Adaptability to the power network (50 hz or 60 hz automatically selected by the crane itself) Cable length up to 830 m Optimized counter jib length of 9 4 m (30.8 ft) and articulating counterweight minimize out of service radius

VIDEO

Catalogs

MR 418
MR 418
8 Pages
