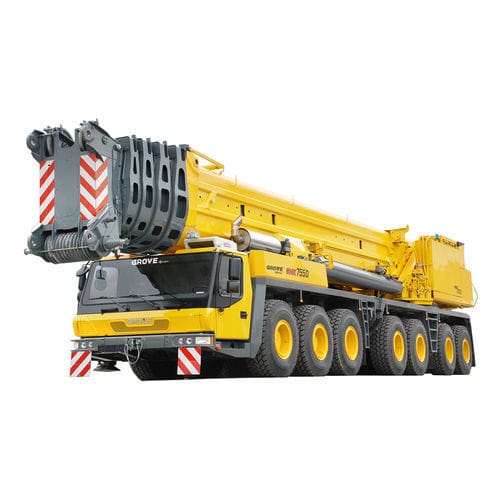

Mobile crane GMK7550luffing jiball-terrain7-axle
Add to favorites
Compare this product
Characteristics
- Configuration
- mobile
- Structure
- luffing jib
- Operating environment
- all-terrain
- Number of axles
- 7-axle
- Other characteristics
- compact
- Lift capacity
450 t
(496 us ton)- Working height
135 m
(442'10" )- Horizontal reach
Max.: 60 m
(196'10" )Min.: 16 m
(52'05" )- Drive engine power
224 kW
(305 hp)- Total counterweight
160 t
(176.37 us ton)- Width (base)
3 m
(9'10" )- Length (base)
20 m
(65'07" )- Total weight
84,000 kg
(185,188 lb)
Description
The Grove flagship the GMK7550 offers a 550-ton maximum capacity on a seven-axle carrier. The 7550 has a stowing crane cab for highway travel. The optional MegaWingLift attachment increases capacity throughout the working radius.
BOOM
• Main boom: 16 m - 60 m, 5-section
• MEGAFORM®
• TWIN-LOCK®
• Luffing jib: 25 m - 79 m (optional)
• Fixed jib: 12 m - 70 m (optional)
• MegaWingLift® (optional)
CARRIER
• Drive/steer: 14x6x14 (optional 14x8x14)
• MEGATRAK®
• Engine: Cummins QSX15, 447 kW
• Transmission: Allison automatic 4800 SP-R 7
• EUROMOT 4 / EPA / CARB Tier 4 final (non road)
Catalogs
Grove GMK7550
60 Pages
