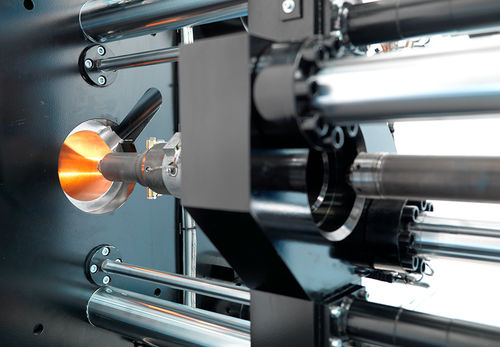

Liquid injector MAP.fifo series

The key advantages offered by the MAP.fifo injection unit invented by MAPLAN lie in its unparalleled performance, system accuracy and the design simplicity. The MAP.fifo is available in three versions: the classic MAP.fifo, the MAP.fifo ergo with easily accessible strip feed-in and the MAP.fifo flex with removable nozzle for different immersion depths into the tool. Highlights: Very short nozzle with minimal pressure loss High-precision repeat accuracy Wide processing window Very little residual material from injection to injection Easy maintenance and cleaning Particularly fast material change The 90° rotated position of the screw unit simplifies operation, because the pull-in height of the strip intake is easily accessible. The optional MAP.fifo ergo temperature sensor detects incorrect material mixtures. The special design of this injection unit offers the advantage to lift-off the nozzle for different immersion depths into the mould.
