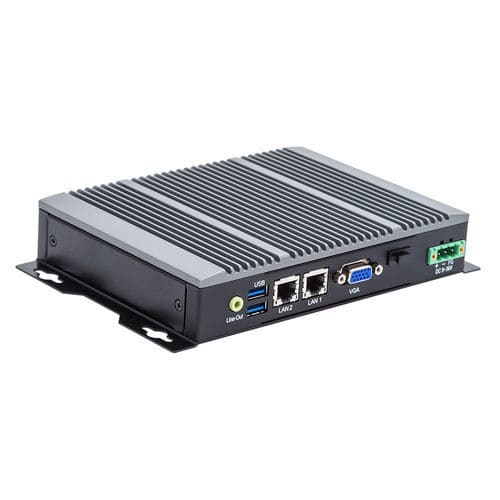

EDGE PC BPC2310A

boxwall-mountedIntel® Celeron N2930

As part of our Industrial PC Series, this Box PC provides a high-quality option for applications that do not require a fixed display. With a Windows® or Linux® Ubuntu® Operating System, this PC supports 3rd party and SCADA software like our AVEVA® Edge. Pair our Box PC with an Industrial Monitor for greater flexibility. • HDMI® and VGA ports • Microsoft Windows® or Linux® OS Options • Memory and Storage upgrades available • Optional Wi-Fi Kit • Steel Chassis, Aluminum Heatsink • Wall Mount • Integrate with AVEVA™ Edge Software CPU Intel® Celeron® N2930 1.83GHz CPU processor System Chipset SoCSystem System Memory Options * 1 x DDR3-L 204-pin SO-DIMM RAM (4, 8 GB) USB 2 x USB 3.0 type A 4 x USB 2.0 type A Serial COM1: RS-232/422/485 DE-9P (default RS-232) COM2: RS-232 DE-9P COM3: RS-232 DE-9P Audio 1 x 3.5 mm line out Display Interface 1 x VGA port (max. 1920 x 1200 pixels) 1 x HDMI® port (max. 1920 x 1200 pixels) LAN 2 x GbE RJ-45 Power 3-pin connector header, DC power input I/O Ports Remote Power Switch N/A Solid State Drive Options ** 1 x 2.5” SATA II, MLC (32, 64, 128, 256, 512 GB SSD) Storage SD Card Slot N/A Expansion Expansion Slot Optional Wi-Fi kit (Wi-Fi card and antenna) Type N/A Interface N/ATouch Screen Light Transmission N/A Input Voltage 9~36 VDC Input Current 0.49 ~ 1.97 AElectrical Input Power 17.8 W Max. Construction Dark grey aluminum heatsink, black steel chassis Rating IP30 Mounting Wall Mount (Wall mounting hardware not included) Dimension (W x H x D) 8.15 x 5.12 x 1.40 inches [207 x 130 x 35.5 mm] Mechanical Net Weight Approx. 2.20 lbs [1 kg] Operating Temperature 32~122°F [0~50°C] Storage Temperature -22~158°F [-30~70°C]
