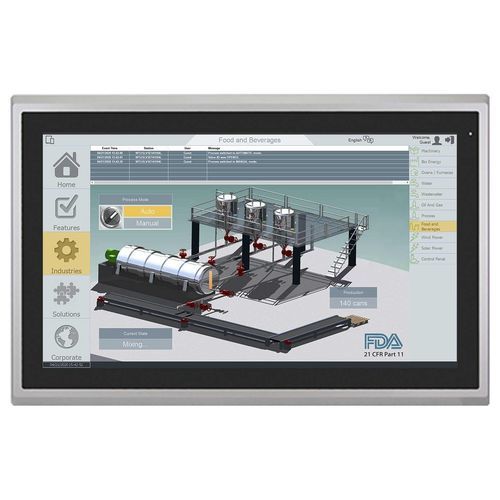

TFT-LCD monitor MON6021APHEB

projected capacitive touchscreenindustrialconstruction

This fanless extended temperature Industrial Monitor features a high-brightness/sunlight readable (1000 nits) projected capacitive touchscreen and is a great value. Requiring no calibrating this plug and play monitor can be paired with a Box PC or create an Andon Display with our HDMI-enabled HMI. VESA or Panel Mount. • Extended Temperature (-20~60°C) • High Brightness Sunlight Readable (1000 Nits) Optically Bonded TFT LCD • IP66 Rated Aluminum Bezel for Washdown Environments • VGA, DVI-D, DisplayPort and HDMI® Inputs • VESA-100 or Panel Mount Design Audio 1 x 3.5 mm Line-in (inactive) Power 3-pin connector header, DC power input Display Interface Options 1 x VGA 1 x DVI-D 1 x DisplayPort 1 x HDMI® USB 1 x Type-B USB 2.0 Client Port (For Touch Interface) I/O Ports On-Screen Display OSD Control Panel at Rear of Chassis Type Projected Capacitive Touch Interface USBTouch Screen Light Transmission 90+% Mounting Panel mounting, VESA 100 x 100 mm Construction Silver die-cast aluminum chassis Mechanical Rating IP66 / NEMA 4 when panel mounted Operating Temperature -4~140°F [-20~60°C] Storage Temperature -22~158°F [-30~70°C] Storage Humidity 10 to 95% @ 40°C, non-condensing Environmental Certifications CE / FCC Class A / RoHS
