Overview

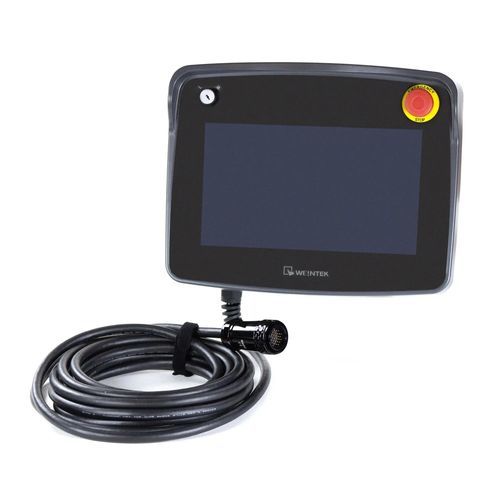

The cMT3106XM is a 10.1″ handheld HMI engineered for flexible operation at equipment or between nearby workstations. It features an integrated rear handle, a 10.1″ WVA LCD touchscreen, tethered connectivity via a connection box, and built‑in safety controls: Key Switch, Emergency Stop and a 3‑Position Enable switch. Tether lengths: 6 m (20 ft) or 10 m (33 ft). One connection box required per workstation (standard or compact).

Connection Box Options

• Standard Connection Box (external mount) — mounts outside control cabinets or on walls for easy access and maintenance.
• Compact Connection Box (internal mount) — installs inside control cabinets for a neat installation.
• Both boxes support an optional E‑Stop bypass plug to keep the safety circuit closed while the handheld HMI is disconnected.

Safety & Access Control

• Key Switch — limits operation to authorized personnel.
• Emergency Stop (E‑Stop) — immediately halts machine operation to meet safety requirements.
• 3‑Position Enable Switch — prevents accidental activation and supports controlled operation modes.

Highlights & Typical Use

• Designed for use at machinery or between adjacent workstations; one connection box per workstation is required.
• Ergonomic rear handle and wall mount kit included.
• Connects to PLCs/controllers via the connection box; supports integration with common industrial protocols when used with Maple Systems software.
• Includes SD/SDHC slot, USB 2.0 host port and external communication through the connection box.

Technical specifications

• Model: cMT3106XM
• Display: 10.1″ WVA LCD, 1024 x 600, 350 cd/m², 1000:1 contrast, 16.7M colors
• Touch: 4‑wire resistive (Length X ±2%, Width Y ±2%)
• CPU / Memory: Quad‑core RISC, 1 GB RAM, 4 GB flash
• Backlight life: 50,000+ hours
• SD Card: SD/SDHC (up to 32 GB)
• USB: USB 2.0 host x1
• Ethernet / Serial: wired via connection box (connection box provides LAN/serial terminals)
• Tether cable options: 6 m (20 ft) or 10 m (33 ft)
• Key switch: NO x1, NC x1, rated 24 VDC, 500 mA, mechanical life ~250,000 ops
• Emergency Stop: rated 30 VDC, 500 mA; standards IEC60947‑5‑1 / EN60947‑5‑1 / IEC60947‑5‑5 / EN60947‑5‑5, UL60947‑5‑5; mechanical life ~250,000 ops
• 3‑Position Enable switch: NO x2, rated 30 VDC, 500 mA; standards IEC/EN 60947‑5‑8, IEC/EN 60947‑5‑1, UL508; mechanical life example 1→2→1 ~1,000,000 ops
• Input power: 24 ±20% VDC; typical power 11.52 W; input current ~480 mA @24 VDC
• Isolation: built‑in power isolation; isolation resistance > 50 MΩ @ 500 VDC
• Enclosure / Mechanical: plastic housing, PCB coating applied; dimensions (H x W x D) approx. 302.7 x 240.0 x 116.8 mm; weight approx. 1.6 kg; wall mount kit included
• Environmental: operating 0 ~ 50° C; storage -20 ~ 60° C; humidity 10% ~ 90% non‑condensing; drop resistance ~1.2 m; vibration 10–25 Hz X/Y/Z, 2G, 30 min
• Certifications / Ratings: cULus listed, CE / UKCA, RoHS compliant, IP65 / NEMA4
