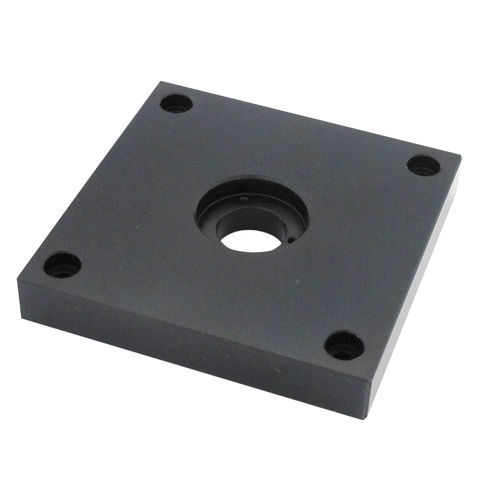

Chuck adapter plate

aluminum

Our corrosion-protected aluminum adaptation plates are designed for 25 mm grid plates and offer flexible adaptation options for different chuck sizes. They are available in various designs and can be combined with positioning sleeves or chuck-specific adaptation shanks if required. Our adaptation plates are specially designed for 25 mm grid plates and offer precise adaptation options for various chuck sizes. They are made of aluminium and are available in either anodized (corrosion-protected) or anodized finish, with the hole spacing corresponding to that of the grid plate. Additional adaptation plates, for example for SH collet chucks, are available on request. Ground positioning sleeves for holes with a diameter of 12.5 mm can also be added as an option. Various types and article numbers are available to provide the right adaptation plate for every chuck size. These can be combined with chuck-specific adaptation shanks and thus offer a flexible solution for your measuring and clamping tasks.
