CT computed tomography system

X-ray3D

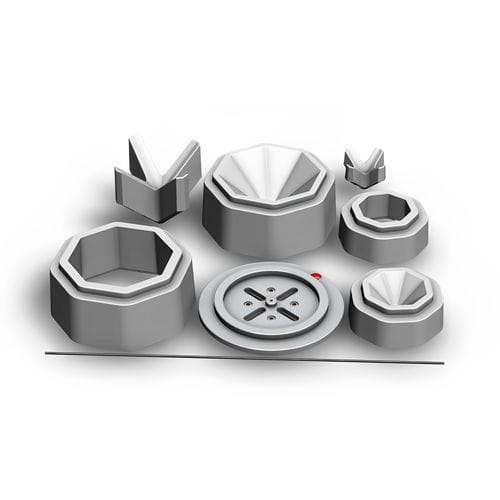

Computer tomography (CT) is a process that uses X-rays to create detailed tomographic images of the inside of bodies or objects and is used for diagnosis in medicine and for analysis in industry. Precise positioning and fixing of smaller measurement objects in 3D coordinate measuring machines The CT-Fix 70 enables precise and stable positioning of smaller measurement objects in 3D coordinate measuring machines with X-ray computed tomography (CT). Thanks to its compact size and stackable components such as the funnel, extension ring and divider, it is ideal for measuring components. The versatile customization options offer flexibility for different object sizes and shapes, allowing multiple objects to be measured simultaneously. Exclusively for CT measuring devices Funnel, divider and extension ring made of special antistatic EPS with low density; for a wide range of materials of the component to be measured Centering pin; inserted into adapter plate through divider etc. For center definition during measurement Homogeneous wall thicknesses to avoid distortions 2 different sizes; 70 and 130mm In use at Werth measurement technology in the application center
