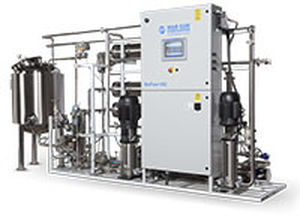

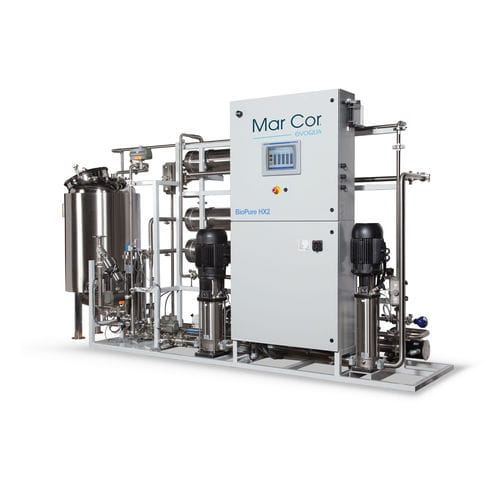

Water purification unit for medical applications BioPure HX2

processreverse osmosisdialysis

Mar Cor Purification introduces the next generation central RO unit, the BioPure HX2. It features a direct feed double pass reverse osmosis system specially designed to meet stringent international hemodialysis water requirements. The double pass water purification system guarantees highest water quality and includes added features of automatic hot water disinfection to simplify the bacteria control process. Meets Health Canada & ANSI/AAMI 13959 specifications Single skid, space saving design Direct feed double pass RO design with single pass capability Automatic Hot Water disinfection program, along with Semi-Automatic Chemical Cleaning and Disinfection programs Four (4) independent modes of disinfection: 1st Pass RO, 2nd Pass RO, Distribution and Point of Use All pharmaceutical grade 316L stainless steel tubing and <25Ra wetted surfaces. All welds are visually inspected Tri-clamp connections aid in sanitary design Automatically adjusts product flow and reject flow based on feed water quality for water conservation. Two Pump VFD design for energy conservation Built in electric heater and low noise air compressor (40 dB) to minimize utility requirements Disinfection Holding Tank (100 US gallons) able to provide hot purified water to dialysis machines for complete disinfection Meets Analytical Norms to CAN//CSA-ISO 11663
