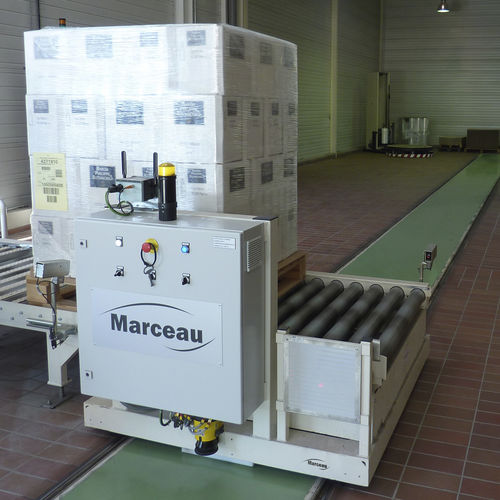

Pallet transfer car NRM series

pallet transfer car
pallet transfer car
pallet transfer car
pallet transfer car
pallet transfer car
pallet transfer car
pallet transfer car
Add to favorites
Compare this product


Characteristics

Options
pallet

Description

Our shuttles / transfers allow you to create a link between multiple pallet conveyor lines. Developed, designed and manufactured by Marceau, our shuttles / transfers are always adapted according to each customer's needs. Main characteristics of our shuttles / transfers are: *Fabricated welded chassis *Finishing: painted steel, hot galvanized steel or all stainless steel version *Handling height: from 100 mm *Maximum load per pallet: 2 tonnes (MARCEAU standard) *Capacity: 1 to 12 pallets *Travel speed: Up to 150 m/min. as standard *Guide rails: set into the floor, fixed on the floor *Power supply possible by: induction, cable carrier chain, daisy chain *Safety by: laser scanners, foam pads, safety edges Our shuttle / transfers can be equipped with: CRM80 or CRM100 roller conveyors CCM100 chain conveyors TTCM100 or TTRM100 turntables CBM100 modular belt conveyors Telescopic forks
