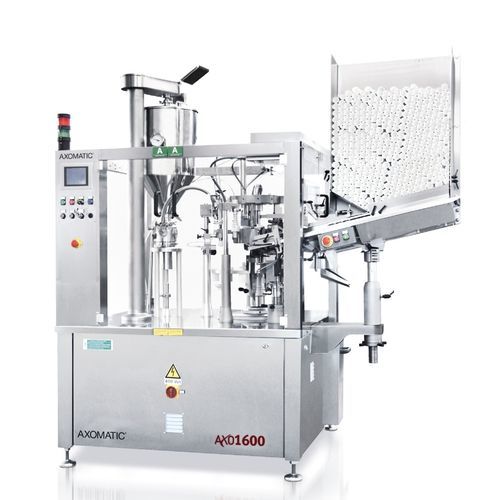

Tube filling and closing machine AXO series

for the cosmetics industry

Automatic filling and closing machine for metal, laminated and plastic tubes. Main features: Machine body covers, electrical cabinet completely in Stainless Steel AISI 304L. Electric control cabinet integrated in the machine perimeter, with easy access to all machine devices. New hot air sealing device with low air consumption. Sealing head for metal tubes by single, double and saddle fold. Accurate automatic tube orientation by registration mark scanner. Device for nozzle cleaning and closing by compressed air (no-drop system). 130 mm diving nozzle stroke for a bottom up better filling of the product, with adjustable stroke. Alphanumeric machine function display T&S of 10”, suitable for Industry 4.0. Centralised lubricant system for an easy maintenance program. Record up to 100 different recipes. Up to 16 turntable stations. Bar code reading device (option). Special injectors for bi-colours, or three colours toothpaste (option). Ergonomic tube loader (option). Full Atex certification (option). More optionals available on request.
