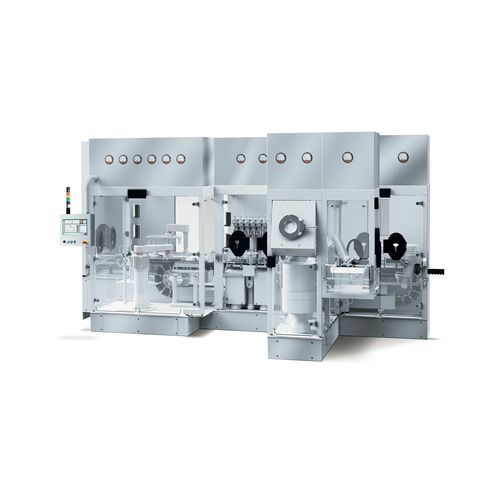

Automatic filling machine Extrafill 10A

syringefor cartridgesliquids

The EXTRAFILL 10 is an Automatic High-speed Filling Machine for nested syringes, capable of processing Ready To Use (RTU) Vials supplied into Nest/Tub or Nested-Trays, and RTU cartridges supplied into Tub/Nest. Main characteristics: • Conceived to fulfill the highest quality requirements of the pharmaceutical industry; • Perfect Air Flow Laminarity over the Containers thanks to the Balcony Style feature; • Possible Wall Installation arrangement with regular maintenance execution through the backside with no contamination of the filling room; • Machine movements with brushless motors; • Innovative stopper sorting system to make format change simpler and avoid stopper jamming; • Equipped with 10 filling heads; • The machine can be set to cover a wide range of formats (Syringe, RTU vials, RTU cartridges) and types of product (liquid up to very viscous gel). Standard model: • High Speed Robotized Denesting\Detraying unit for Syringe and RTU Vials; • Dosing system with individual adjustment of each single pump; • Easy Switch from Rotary Piston Pumps to Peristaltic Pumps by using the same motorizations; • 0 ÷ 100% Adjustable Weight In Process Control (IPC); • Single Container Rejection • Sticky Stoppers (twin stoppers) rejection and recovery to avoid jamming on the feeding system; • Dedicated unload lane for Sampling filled and stoppered containers; • No Glass-To-Glass connection to any downstream machine (visual inspection machine or syringe re-nesting unit); • Integrated diverting system to feed vials to an alu-capping machine; • Possibility to install the machine under LAF, open RABS, closed RABS or Isolator.
