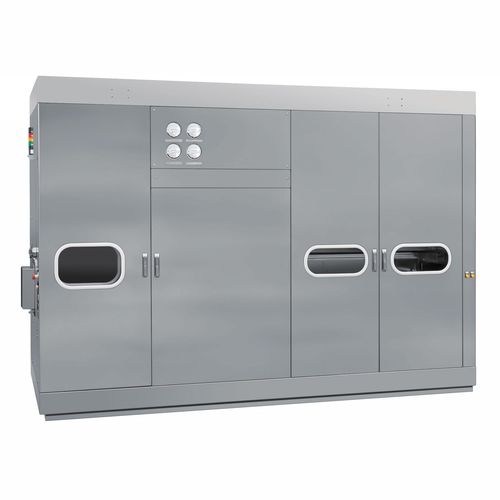

Ampoule depyrogenation tunnel DEPYR601
air blastautomaticfor vials

ampoule depyrogenation tunnel
ampoule depyrogenation tunnel
Add to favorites
Compare this product


Characteristics

Technology
air blast
Operational mode
automatic
Applications
for vials, for bottles, for the pharmaceutical industry, for ampoules
Other characteristics
stainless steel

Description

DEPYR are Depyrogenation Tunnels for ampoules, Small Volume Parenteral (SVP) vials and larger bottles. Main features: • Tubular stainless steel frame with hinged doors on front side and easy removable panels on the maintenance side, to guarantee total free access to every area of the tunnel; • Filters installation from operator side, all instruments, sensors, validation ports and controls are accessible from the 2 openable sides. No need of  intervention or installation on top of the machine. • Inspection glass doors on pre-heating and cooling chambers; • Fully integrated on board design for quick installation; only one exhaust duct is required; also the air extracting fan is installed on board; Standard constructional specifications: • Expansion compensation system of the metal structure during heating with no particle generation; • Automatic pressure compensation systems with the highest overpressure into the hot zone and in cascade to cooling and infeed chamber. That guarantees a perfect process repeatability and the maximization of depyrogenating capacity. • Symmetrical air recycling (50% left and 50% right side) into the hot chamber to guarantee a very constant temperature distribution across the tunnel conveyor. • Cooling chamber realized with 100% air recycling to: • guarantee a better temperature control; • achieve a very low glass temperature at the exit of the tunnel; • do not influence the tunnel room making room balancing easier; • offer a longer life time of HEPA filters • reduce energy consumption.
