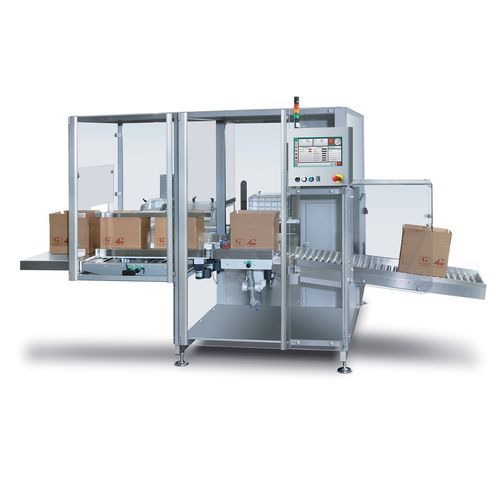

Horizontal case packer PS series

semi-automaticautomaticfor cartons

PS are Automatic or Semi-Automatic machines suitable to receive single or bundled products on infeed conveyor, collate and introduce them into a case taken from magazine, tape close the case with non overlapping self adhesive tape and discharge the sealed case. Main features of PS 510 model: • The basic machine is complete in all following parts and delivered with the Œ mark. • Structure in finished and painted aluminium panels. Covers in Methacrylate. • Carton infeed conveyor 1400mm (55") long. Pneumatic product elevation assembly. • Infeed guides for cartons on the elevation section adjustable with hand wheels. • Product collation hopper in stainless steel AISI 304S. • Carton pusher unit driven by a gear motor. • Inclined magazine for folded cases. Motorized case pick-up arm with suction cups. • Adjustable case transport chain. Front side case flap folders. • Rear side case flap folders driven by servo motors. Upper and lower case transport belts. • Two self-adhesive taping units for not overlapping finish. PRODUCT RANGE: Width: 120 mm - 350 mm Height: 75 mm - 350 mm Length: 140 mm - 450 mm
