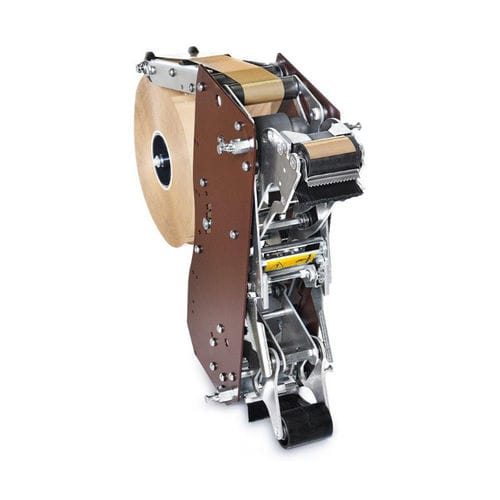

Self-adhesive tape taping head TU3.1

Taping head designed for use with 75 mm wide self-adhesive tape. The length of the overlap is 25mm. It can be installed on all models of our taping machines thanks to the various sets of dedicated pins, with the exception of the GT 34 / 34R. TU 3.1        WORKING SPECS U.M.       Tape width mm./inch. 75/3" Maximum diameter of the tape reel mm. 360 Tape Reel inner hole diameter mm. 76 Minimum box height using two taping heads mm. 90 Maximum length of tape overlap mm./inch. 25/1" Minimum box width mm. 125     TECHNICAL DATA U.M.       Full length mm. 425 Inner width measured at the mounting pivots mm. 137 Full width mm. 170 Total height with full reel mm. 595 Total weight Kg. 8,2
