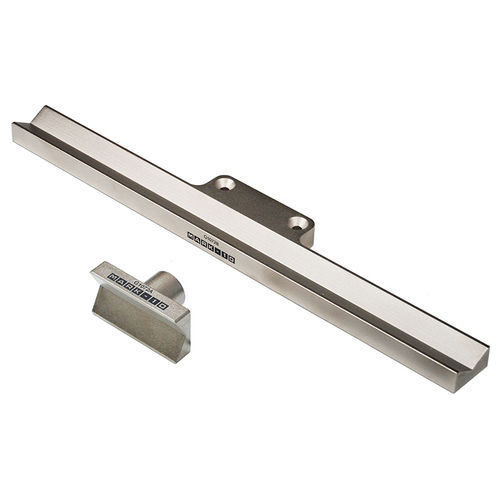

Test fixture G1072

Used to determine the opening force of flat folded cartons along their score lines. Ideal for numerous applications in the packaging, food and beverage, medical device, consumer products, and many other industries. Upper and lower fixtures are easily removable. Use this fixture with a choice of test stand and force gauge to create a complete score bend testing system. • Set of upper lower dies provided to accommodate various sized packaging materials • Fixtures are easily removable • Mounts directly to the following test frames (motorized test frames recommended): • Maximum force: 50 lbF (250 N) • Weight: Upper die: 0.06 lb [0.03 kg] Lower die: 0.10 lb [0.05 kg] • Shipping weight: 2 lb [0.9 kg]
