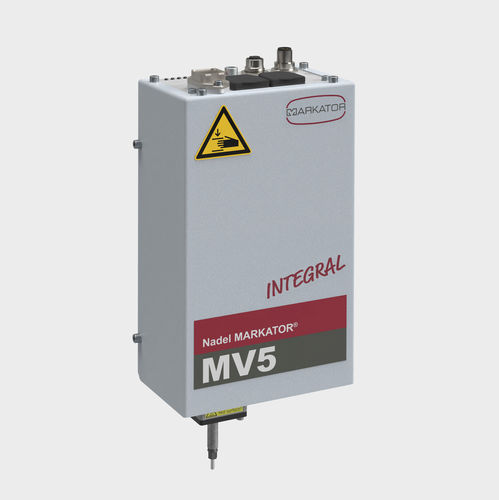

Dot peen marking machine MV5 U65/30 INTEGRAL

for integrationcompact

Easy to integrate thanks to integrated control unit It has never been easier to integrate a marking head into a production line than with the MV5 U65/30 INTEGRAL. Thanks to the internally installed control unit, there is no longer any need for an external control unit. Programming is done via an external PC. The marking head is equipped with a low-wear marking tool. It works independently of position and is extremely reliable. FUNCTIONAL • ALL-IN-ONE: Control unit is integrated in the marking head housing • Large marking field with low device volume • Stable mechanics through high-quality, double-guided linear guides in X and Y direction EASY INTEGRATION • The compact housing and the low weight of the device simplify installation, especially when space is limited • Ideal for integration into test facilities • Communication to PLC via function block (optional) • Fast function control by 6 status LED at the marking head ELECTRIC DRIVE • Operation without compressed air thanks to electromagnetic magnet • Only 24V connection necessary • High repeat accuracy when marking nearly all materials - up to hardened steel
