Laser marking system MV6 VarioLase

data matrixbarcodeindustrial

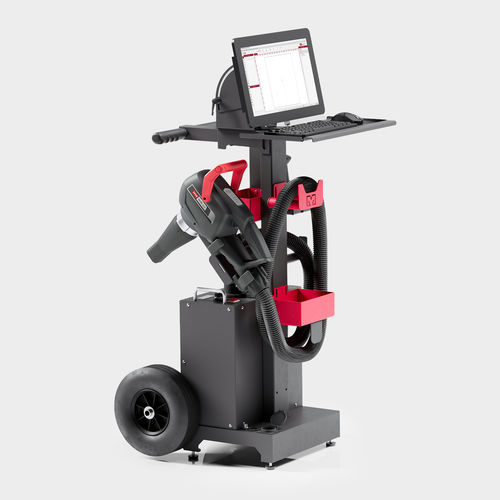

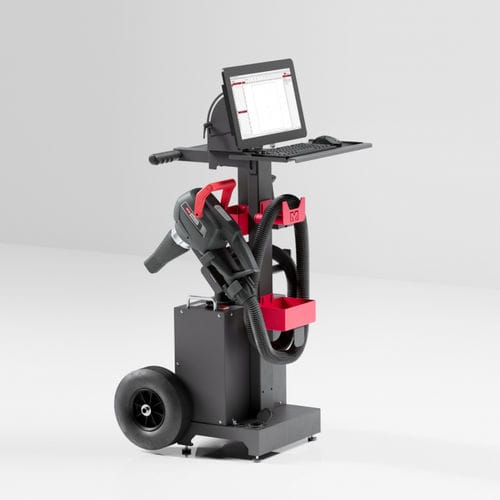

Mobile laser marking system for flexible on-site use, suitable for marking hard-to-reach or bulky components. The unit is designed as a safe system and meets Laser Class 1 requirements through a nozzle seal in the attachment.

VERSATILE

• Laser engraving: steel and aluminium / annealing marking: steel and aluminium / foaming: plastics
• Three attachments with quick-change system for different shapes to mark hard-to-reach areas
• Data Matrix code, QR code, barcode, PDF-417 and more can be scanned as input or created directly in the software

INTERFACES

• Numerous interfaces such as TCP/IP and Profinet can be integrated

ERGONOMICS AND FUNCTIONALITY

• Control panel continuously adjustable from 30° to 80° to improve visibility

SAFETY

• Nozzle sealing in the attachment ensures Laser Class 1; LEDs on the handle indicate whether the nozzle seal is in place and the laser can be activated

Technical characteristics / Specifications

• Laser technology: Fiber laser
• Power: 20 W
• Power supply: 100-240 V AC
• Air supply / compressed air: 3 to 7 bar
• Cable length from hand unit to rack: 2.4 m
• Weight of hand unit: 2.5 kg
• Total weight rack / hand unit / cable: 24 kg
• Safety level of PL-e safety devices: PL-e
