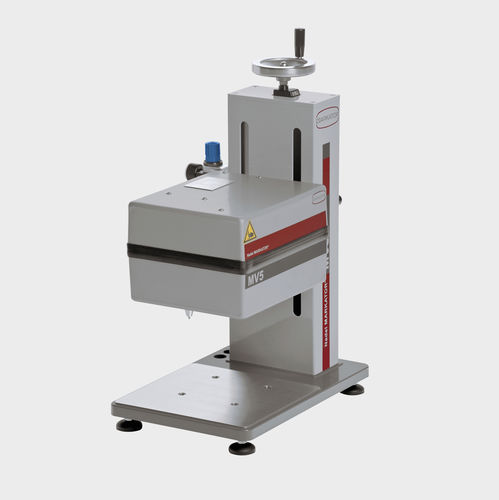

Scribe marking machine MV5 VT0

benchtoppneumatic

High marking quality with minimum noise level The table marking system MV5 VT0 has a marking area of 100 x 100 mm. The scribe marker is standard equipped with a high-quality marking tool - consisting of a diamond marking pin and a maintenance-free stylus. The marking results are of particularly high quality. The marking head is maintenance-free and offers optimum wear properties. MECHANICS • High-quality linear guides in combination with precision ball bearing screws provide the marking head with high stability and highest repeat accuracy • Optimum wear properties • Due to its robust mechanics, the MV5 VT0 marking head is particularly suitable for marking high-precision Data Matrix Codes - even in very small sizes • High functionality through modular MARKATOR design system EXACT • Maximum marking quality at high speed • Different marking forces are infinitely adjustable by a pressure controller • Extremely quiet and high-quality marking due to optimized scribe technology COLUMN • Highest stability of the machine table due to two solid guides • Fast height adjustment of the scribe marker via handwheel, which is up to 4x faster than conventional systems • Integrated digital height display for precise positioning
