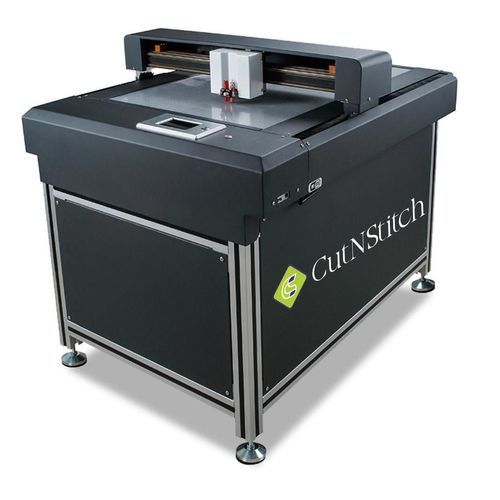

Paper cutting plotter CNC 4560

for plasticsfor foamfor vinyl

Description
The flatbed cutting plotter is a precision A3+ contour cutting system engineered for consistent, repeatable performance in signage, packaging prototypes, labels and small-format industrial applications. The stable flatbed frame and camera-based contour detection ensure accurate alignment and distortion-free cuts, while the automatic feeding and dual-blade configuration increase throughput for short-run production and sample preparation. The unit is controlled via an intuitive software interface designed for quick job setup and reduced operator intervention.

Key Features

• Type: Small flatbed automatic contour cutting machine
• Cutting system: Dual blade with automatic feeding
• Application: Labels, stickers, packaging prototypes, custom graphics
• Size: A3+ format (compact desktop design)
• Precision: ±0.2 mm accuracy
• Operation: Camera-based contour detection for registration

Technical Description

• Cutting area: A3+ size (approx. 330 × 483 mm)
• Cutting accuracy: ±0.2 mm
• Drive system: Servo motor with linear guide
• Feeding method: Automatic feeding system with camera alignment
• Cutting tools: Dual blade setup for simultaneous or alternating use
• File formats supported: DXF, PLT, PDF, CUT
• Materials: Adhesive vinyl, paper, PET, PVC films, foam sheets, carton samples
• Safety features: Emergency stop, anti-collision sensors, infrared detection
• Power supply: AC 110V/230V

Model options / Technical specifications

• Models: CNC 4560, CNC 6090
• Maximum cutting area (A3+): approx. 330 × 483 mm
• Accuracy: ±0.2 mm
• Drive: Servo motor with linear guide
• Feeding: Automatic feeding with camera-based contour detection
• Cutting tools: Dual blade configuration
• Supported file formats: DXF, PLT, PDF, CUT
• Compatible materials: Adhesive vinyl, paper, PET, PVC films, foam sheets, carton samples
• Safety: Emergency stop, anti-collision sensors, infrared detection
• Power requirements: AC 110V/230V
