Benchtop marking system MK-400

electromagneticdot peen

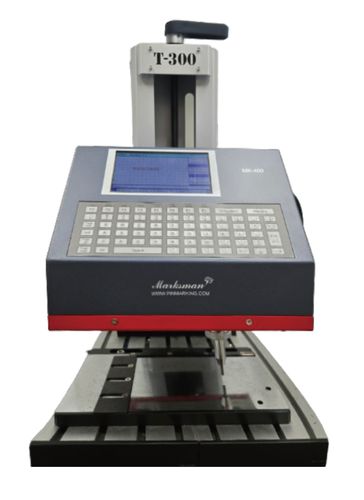

MK-400 Stand alone (Bench-top) marking machine Stand alone Dot peen marking machine “MK-400” are designed for small quantities and various kinds of marking. “MK-400” has built in controller inside of marking head as Bench top marking machine. You can even edit marking information with inbuilt keyboard and verify your variable data and setting to front built-in LCD. It supports actual marking to linear, angular and cylindrical surfaces. (No need other optional program)Any material can be marked from plastic and hardened steel upto HRC 62. Specification Model : - MK-400 Dimension - : 248mm (W) X 275mm (L) X 190mm (H) Marking area : - 130mm (X) X 100mm (Y) Weight : - 12kg , T300 table : 20kg Available cha. height - : 1.0 - – upto max. depending on Marking Window Font - Standard 1 & 2, DOT font (Size 5x7), User fonts Marking Pin : - Electromagnetic marking pin Stroke of marking pin. : - Upto Max. 5mm (Constant marking depth) Available Cha. - Figure, Capital letters, Lower case. Special cha. Electric - Select 85 ~ 230V, 50/60Hz Data storage : - Inside memory or external USB slot
