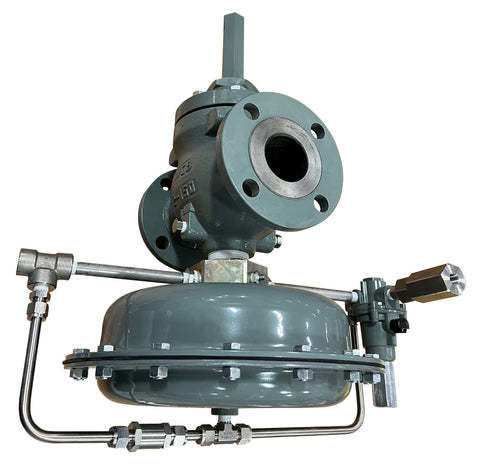

Air pressure regulator P1098

for gasdiaphragmsteel

Product Description
The BelGAS P1098 pressure reducing regulator is a pilot-operated regulator designed for large-volume gas control with outlet pressures from inches of water column up to 75 PSIG depending on pilot selection. It features a two-path pilot system and a large-area actuator diaphragm for fast, accurate response. The pilot amplifies control to the main valve; a sharp-edged orifice and soft seat deliver bubble-tight shutoff.

Key Features

• Multiple pilot options covering low to high outlet pressures
• Main valve inlet pressure capability varies by pilot (up to 600 PSIG)
• Loading pressure bleeds downstream (no atmospheric relief)
• Pilot amplifies main valve for precise control
• Connection options: NPT or flanged (150 RF, 300 RF)
• Rebuild kits and spare parts available

Applications

• City/district regulator stations
• Commercial and industrial boiler systems
• Furnaces, ovens and process heating
• Plant gas and air distribution systems

Technical Specifications

• Model: P1098
• Pilot operated: Yes
• Available pilot/spring ranges: P600, PL81, PL84, PL61LD, PL61LE, PL61H, PL61HP (spring ranges from 4" WC up to 300 PSIG depending on pilot)
• Max inlet pressure by pilot: P600: 150 PSIG; PL81: 250 PSIG; PL84: 150 PSIG; PL61LD / PL61LE: 160 PSIG; PL61H: 400 PSIG; PL61HP: 600 PSIG
• Connections: NPT or flanged (150 RF, 300 RF)
• Rebuild kits: Available

Materials & Temperature

• Body: WCB steel; Bonnet: steel; Trim: 316 stainless
• Diaphragms: Nitrile or FKM (fluorocarbon)
• Temperature ranges: Nitrile: -20 to 180°F; Fluorocarbon: 0 to 300°F

Ordering information
Specify model P1098, required pilot option, connection type and flange class when ordering. Contact BelGAS for rebuild kits and spare parts.
