laboratory freeze dryer
DELTA 2-24 LSCplus

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
laboratory freeze dryer laboratory freeze dryer - DELTA 2-24 LSCplus


  • Laboratory/process:



Freezing and drying inside the ice condenser (single-chamber method) on ten heatable shelves, optionally with a fan

Condenser capacity: 24 kg
Condenser temperature: -85 °C

Product specifications

Max. number of shelves10
Shelf diameter200 mm
Total shelf area0,31 m²
Shelf temperature-40 °C to +60 °C

Base Model

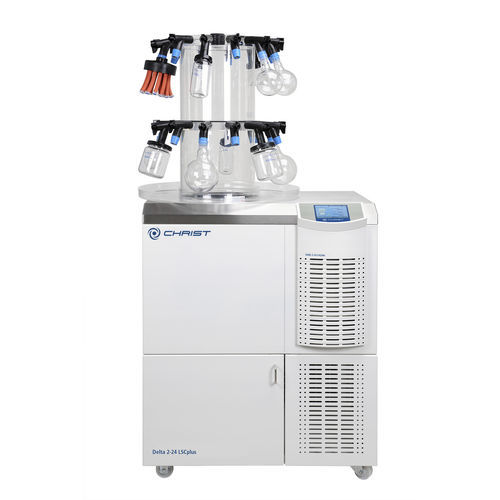

Compact, mobile unit for effective lyophilisation of specimens with innovative Wireless Shelf technology. The freeze dryer can be configured with tried and tested accessories to meet your specific needs. The simple and intuitive LSCplus controller supports manual and automatic process control for reproducible results.
Two different drying methods are available to handle virtually every task. -85 °C for specimens containing solvents or with low eutectic points.

Product Specifications

Ice condenser capacity 24 kg
Ice condenser performance 18 kg/24 h
Ice condenser temperature -85 °C
Dimensions of base model (W x H x D)860 x 1050 x 650 mm
Weight 250 kg
Communication port Ethernet

Special Features

Vacuum control
Pressure rise test
Defrost function
Product temperature
Program selector
