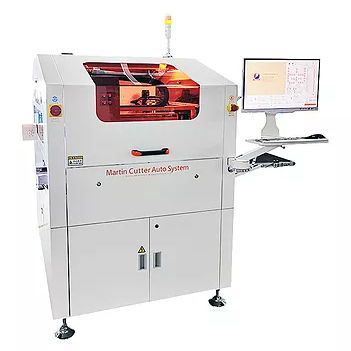

Inline PCB Depaneling
-Solution for Low-Stress Depanelization
-A quick and easy method to learn and use by image orientation programming
-Automatic Alignment Compensation by CCD camera
-Milling Cutter intelligent mode
-Whole process monitoring on the operation error
-Read PCB or Fixture QR code load program
-MES Ready
PCB is scanned by CCD camera and the fiducial mark and cutting path is just teach on the PCB image
Dual table can minimize the idle time. When one table is routing, the other table can exchange the PCB
Cutter is divided into several segments. When one segment reaches the cutting distance limit, it switches to another segment to continue thus, increasing the lifetime of cutting bit
