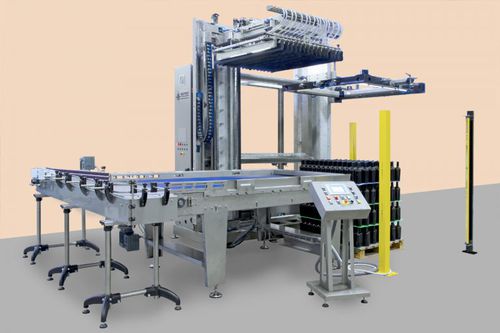

Gripping depalletizer TATO 20

layersemi-automaticbottle

Machine suitable for the depalletizing of bottles, glasses, jars, and tins with transfer of a layer at a time through gripping (NECK HANDLING), a system enabling to insert both flat pads and trays between the layers. This machine, with semiautomatic controls or, with the necessary accessories, completely automated, is a model suitable for bottling lines with capacity up to 200 containers/minute. All movements are mechanical, motorized, and controlled through variable speed drive inverters for precise and soft starts and stops. Machine equipped with independent perimetric centring device controlling the pallet permanently, without releasing it, till exhaustion. The centring template provides to align the rows of bottles before the descent of the gripping head and to wrap the pallet so preventing the accidental fall of the bottles. The presence of the operator is required only for the functions of positioning and removal of the pallets, removal of the top frames and the pads between the layers, while the pick up of the layers, their transfer to the discharge storage unit and lay down are performed automatically with the impulse given through a button, leaving the operator the time to perform other tasks. The sturdy framework, open on 3 sides to allow easy access to the operator, is equipped with rapid format change adjustment devices without the use of wrenches, through suitable spacing templates. The control keyboard is equipped with man/machine interface Touch Screen display indicating any anomalies, format change adjustment and production data. The positioning of the pallets can be both motorized and manual through pallet guides on the floor.
