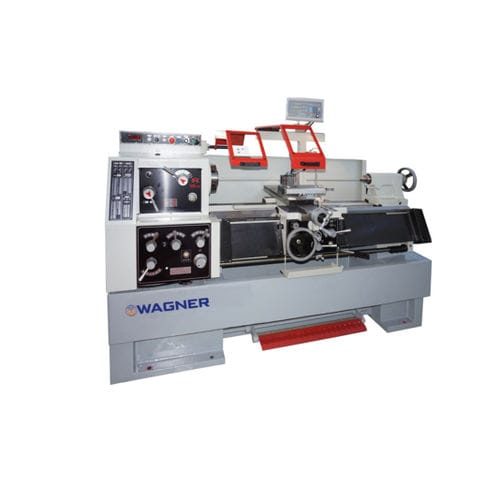

Conventional lathe WDR series
horizontal3-axispowerful

conventional lathe
conventional lathe
conventional lathe
conventional lathe
conventional lathe
Add to favorites
Compare this product


Characteristics

Control type
conventional
Spindle orientation
horizontal
Number of axes
3-axis
Other characteristics
powerful, compact, spindle
Diameter

230 mm, 320 mm
(9.06 in, 12.6 in)

Spindle speed

Min.: 15 rpm
(94.248 rad.min-1)

Max.: 2,700 rpm
(16,964.6 rad.min-1)

Maximum part length

130 mm
(5 in)

Bar capacity

54 mm, 63 mm, 80 mm, 102 mm
(2 in, 2 in, 3 in, 4 in)

Nominal power

5.5 kW, 7.5 kW, 10 kW
(7.5 hp, 10.2 hp, 13.6 hp)

Overall lenght

2,370 mm, 2,400 mm, 2,900 mm, 4,410 mm
(93 in, 94 in, 114 in, 174 in)

Overall width

1,100 mm
(43 in)

Overall height

1,800 mm
(71 in)

Weight

Min.: 2,000 kg
(4,409 lb)

Max.: 3,600 kg
(7,937 lb)

Description

- Engine spindle brake - Fixed stops - Strong tailstock with quick clamping - Tailstock with quill feed 1: 1 or 1: 4 - Hydraulic chuck (optional) - Stepless speed (optional) - standard equipment: hardened and ground bed guides
